About EyeSight
( 1)
( 2)
( 3)
( 4)
( 5)
( 6)

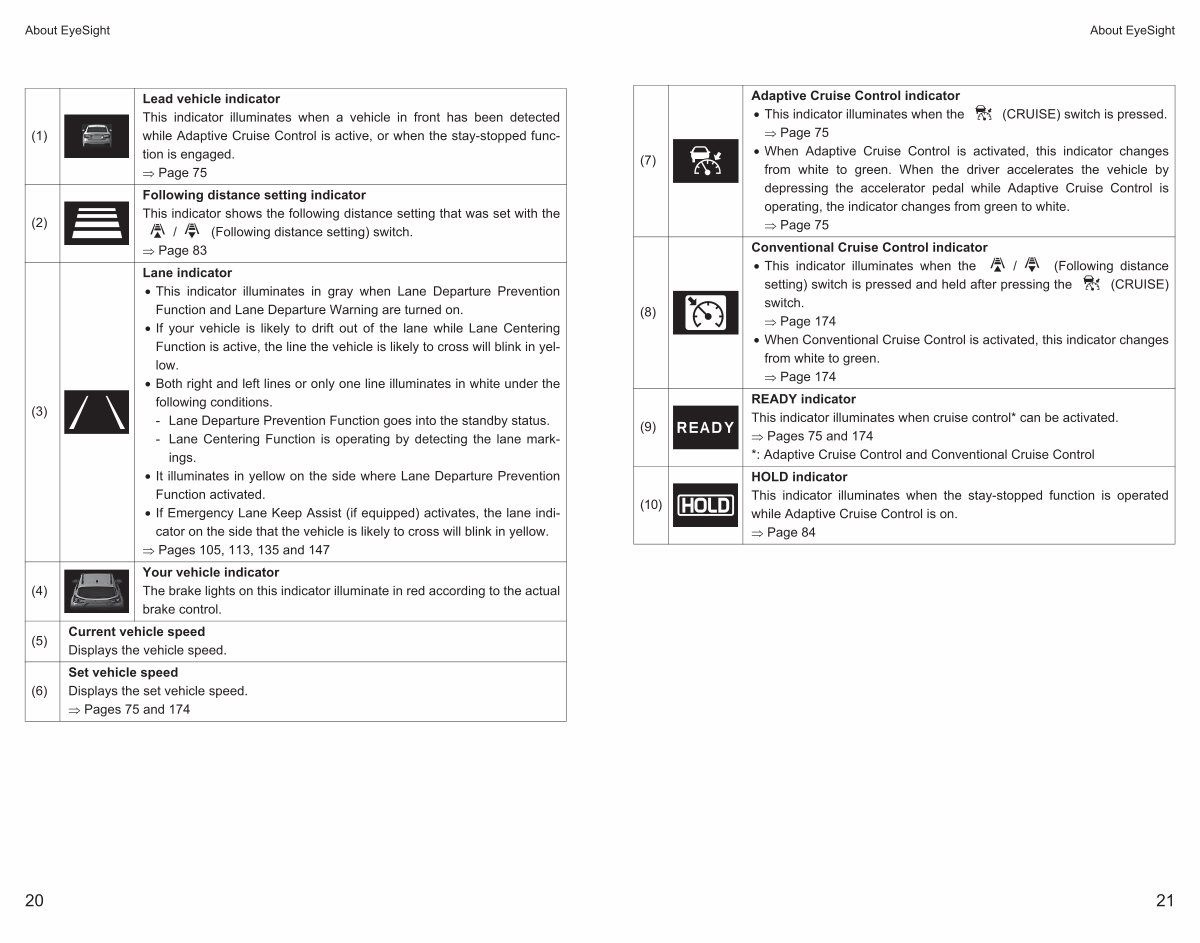

Lead vehicle indicator This indicator illuminates when a vehicle in front has been detected while Adaptive Cruise Control is active, or when the stay-stopped function is engaged.
� Page 75 Following distance setting indicator This indicator shows the following distance setting that was set with the
/( Following distance setting) switch.
� Page 83
Lane indicator
• This indicator illuminates in gray when Lane Departure Prevention Function and Lane Departure Warning are turned on.
• If your vehicle is likely to drift out of the lane while Lane Centering Function is active, the line the vehicle is likely to cross will blink in yellow.
• Both right and left lines or only one line illuminates in white under the following conditions.- Lane Departure Prevention Function goes into the standby status.- Lane Centering Function is operating by detecting the lane markings.
• It illuminates in yellow on the side where Lane Departure Prevention Function activated.
• If Emergency Lane Keep Assist( if equipped) activates, the lane indicator on the side that the vehicle is likely to cross will blink in yellow.
� Pages 105, 113, 135 and 147 Your vehicle indicator The brake lights on this indicator illuminate in red according to the actual brake control. Current vehicle speed Displays the vehicle speed. Set vehicle speed Displays the set vehicle speed.
� Pages 75 and 174
20
