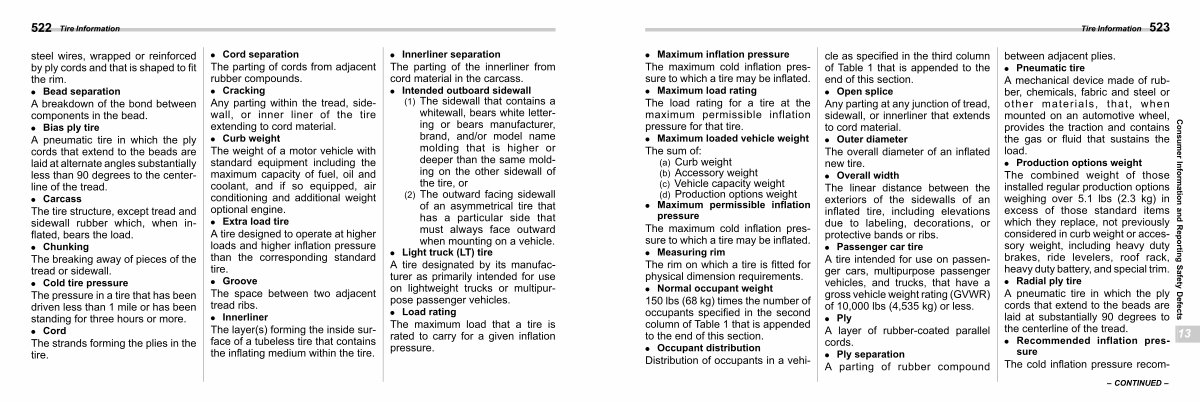

Tire Information 523 |
|||
|
. Maximum inflation pressure The maximum cold inflation pressure to which a tire may be inflated.
. Maximum load rating The load rating for a tire at the maximum permissible inflation pressure for that tire.
. Maximum loaded vehicle weight The sum of:
( a) Curb weight( b) Accessory weight( c) Vehicle capacity weight( d) Production options weight
. Maximum permissible inflation pressure
The maximum cold inflation pressure to which a tire may be inflated.
. Measuring rim The rim on which a tire is fitted for physical dimension requirements.
. Normal occupant weight 150 lbs( 68 kg) times the number of occupants specified in the second column of Table 1 that is appended to the end of this section.
. Occupant distribution Distribution of occupants in a vehicle
|
as specified in the third column of Table 1 that is appended to the end of this section.
. Open splice Any parting at any junction of tread, sidewall, or innerliner that extends to cord material.
. Outer diameter The overall diameter of an inflated new tire.
. Overall width The linear distance between the exteriors of the sidewalls of an inflated tire, including elevations due to labeling, decorations, or protective bands or ribs.
. Passenger car tire A tire intended for use on passenger cars, multipurpose passenger vehicles, and trucks, that have a gross vehicle weight rating( GVWR) of 10,000 lbs( 4,535 kg) or less.
. Ply A layer of rubber-coated parallel cords.
. Ply separation A parting of rubber compound
|
between adjacent plies.
. Pneumatic tire A mechanical device made of rubber, chemicals, fabric and steel or other materials, that, when mounted on an automotive wheel, provides the traction and contains the gas or fluid that sustains the load.
. Production options weight The combined weight of those installed regular production options weighing over 5.1 lbs( 2.3 kg) in excess of those standard items which they replace, not previously considered in curb weight or accessory weight, including heavy duty brakes, ride levelers, roof rack, heavy duty battery, and special trim.
. Radial ply tire A pneumatic tire in which the ply cords that extend to the beads are laid at substantially 90 degrees to the centerline of the tread.
. Recommended inflation pressure
The cold inflation pressure recom-
|
Consumer Information and Reporting Safety Defects
13
|
– CONTINUED – |
