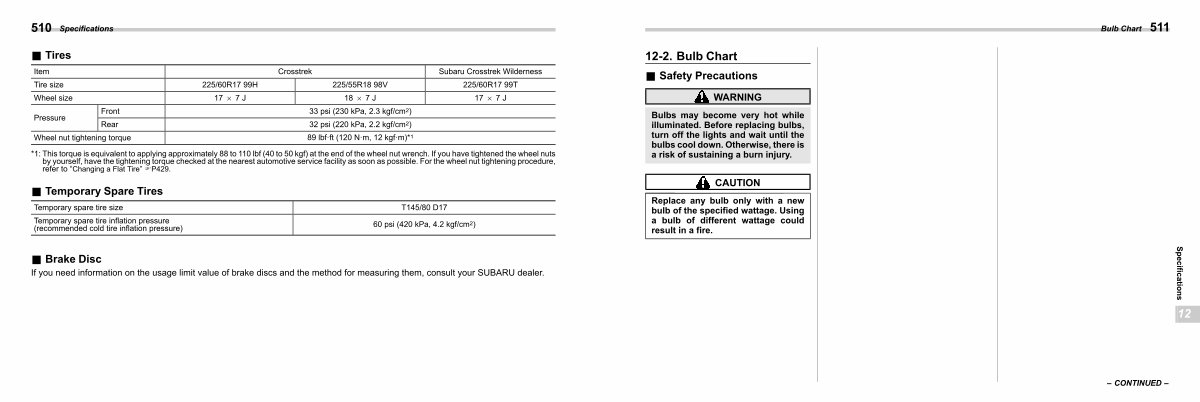

510
Specifications
& Tires
s12aa05 |
Item |
Crosstrek |
Subaru Crosstrek Wilderness |
Tire size |
225 / 60R17 99H |
225 / 55R18 98V |
225 / 60R17 99T |
Wheel size |
17 6 7 J |
18 6 7 J |
17 6 7 J |
Pressure |
Front
Rear
|
33 psi( 230 kPa, 2.3 kgf / cm 2)
32 psi( 220 kPa, 2.2 kgf / cm 2)
|
Wheel nut tightening torque |
89 lbf · ft( 120 N · m, 12 kgf · m)* 1 |
* 1: This torque is equivalent to applying approximately 88 to 110 lbf( 40 to 50 kgf) at the end of the wheel nut wrench. If you have tightened the wheel nuts by yourself, have the tightening torque checked at the nearest automotive service facility as soon as possible. For the wheel nut tightening procedure, refer to“ Changing a Flat Tire” FP429.
& Temporary Spare Tires
Temporary spare tire size Temporary spare tire inflation pressure( recommended cold tire inflation pressure)
s12aa15
T145 / 80 D17 60 psi( 420 kPa, 4.2 kgf / cm 2)
& Brake Disc s12aa18
If you need information on the usage limit value of brake discs and the method for measuring them, consult your SUBARU dealer.
