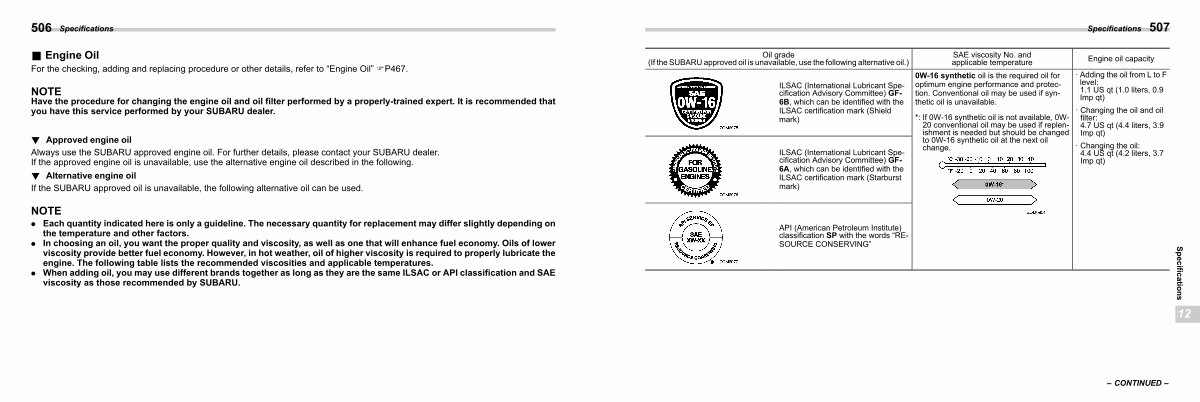

Specifications 507
Oil grade( If the SUBARU approved oil is unavailable, use the following alternative oil.)
ILSAC( International Lubricant Specification Advisory Committee) GF- 6B, which can be identified with the ILSAC certification mark( Shield mark)
ILSAC( International Lubricant Specification Advisory Committee) GF- 6A, which can be identified with the ILSAC certification mark( Starburst mark)
SAE viscosity No. and applicable temperature
0W-16 synthetic oil is the required oil for optimum engine performance and protection. Conventional oil may be used if synthetic oil is unavailable.
*: If 0W-16 synthetic oil is not available, 0W- 20 conventional oil may be used if replenishment is needed but should be changed to 0W-16 synthetic oil at the next oil change.
Engine oil capacity
· Adding the oil from L to F level: 1.1 US qt( 1.0 liters, 0.9 Imp qt)
· Changing the oil and oil filter: 4.7 US qt( 4.4 liters, 3.9 Imp qt)
· Changing the oil: 4.4 US qt( 4.2 liters, 3.7 Imp qt)
API( American Petroleum Institute) classification SP with the words“ RE- SOURCE CONSERVING”
Specifications
12
– CONTINUED –
