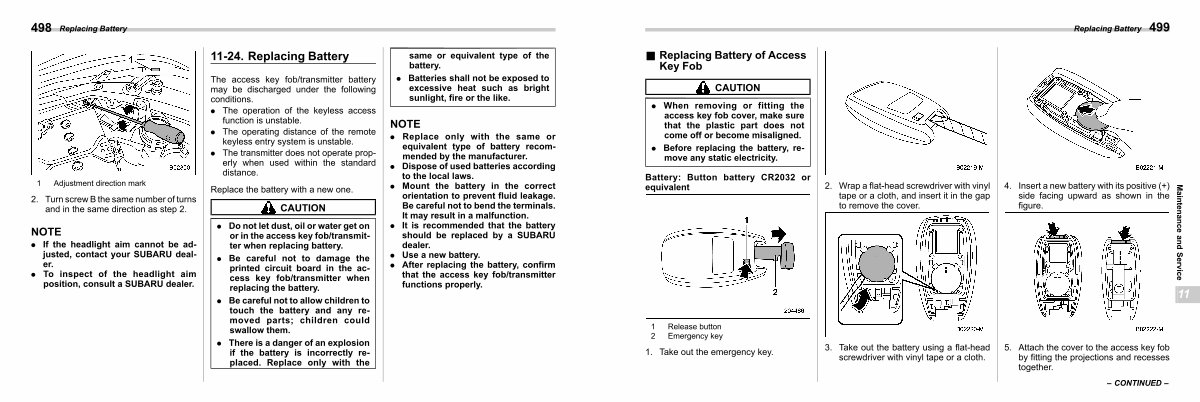

& Replacing Battery of Access Key Fob s11bk01 |
|||
CAUTION |
|||
|
. When removing or fitting the access key fob cover, make sure that the plastic part does not come off or become misaligned.
. Before replacing the battery, remove any static electricity.
|
|||
Battery: Button battery CR2032 or equivalent |
2. Wrap a flat-head screwdriver with vinyl tape or a cloth, and insert it in the gap to remove the cover. |
4. Insert a new battery with its positive(+) side facing upward as shown in the figure. |
Maintenance and Service |
11 |
|||
|
1 Release button 2 Emergency key
1. Take out the emergency key.
|
3. Take out the battery using a flat-head screwdriver with vinyl tape or a cloth. |
5. Attach the cover to the access key fob by fitting the projections and recesses together. |
|
– CONTINUED – |
