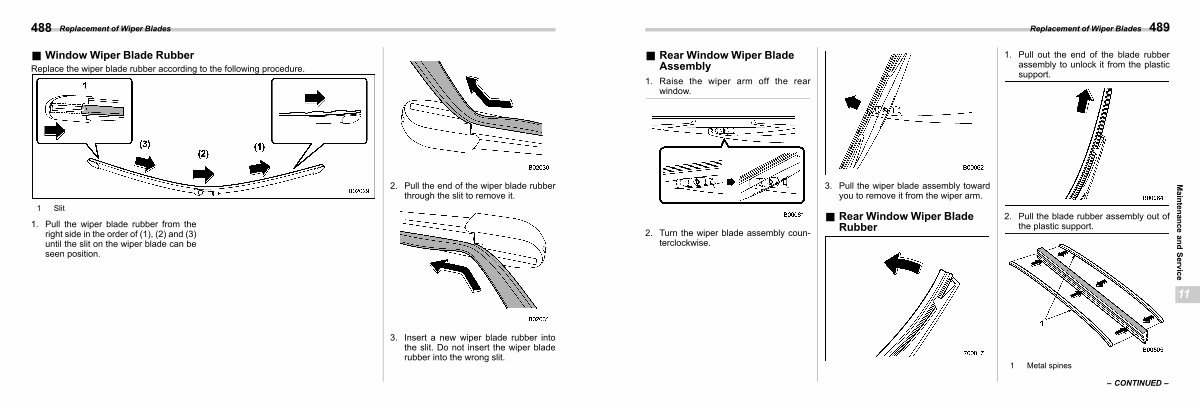

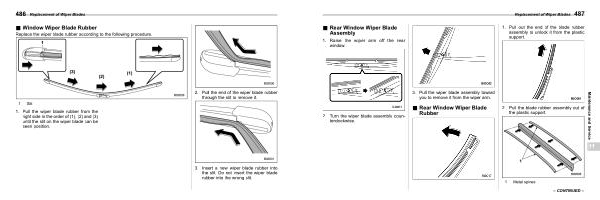

& Rear Window Wiper Blade Assembly s11az03
1. Raise the wiper arm off the rear window.
|
1. Pull out the end of the blade rubber assembly to unlock it from the plastic support. |
|||||
2. Turn the wiper blade assembly counterclockwise. |
3. Pull the wiper blade assembly toward you to remove it from the wiper arm.
& Rear Window Wiper Blade Rubber s11az04
|
2. Pull the blade rubber assembly out of the plastic support. |
Maintenance and Service |
|||
11 |
||||||
1 Metal spines |
||||||
– CONTINUED – |
