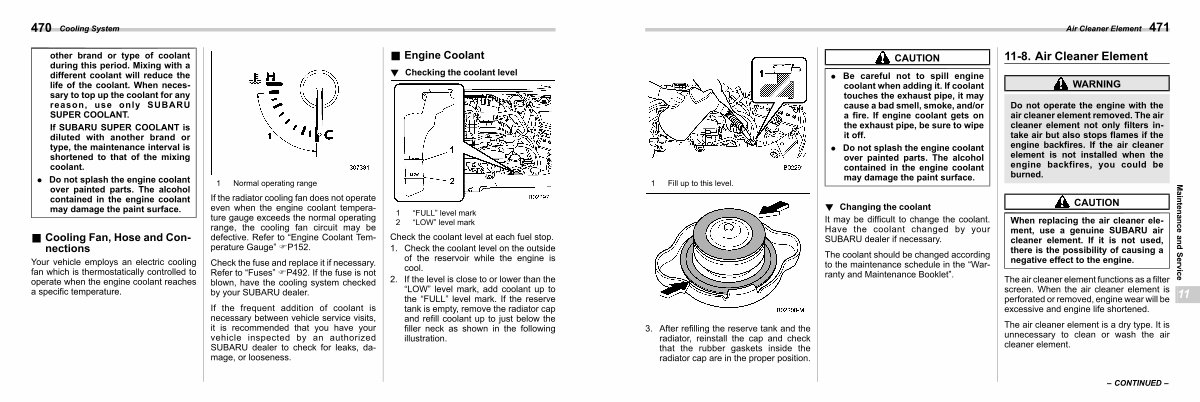

Cooling System
other brand or type of coolant during this period. Mixing with a different coolant will reduce the life of the coolant. When necessary to top up the coolant for any reason, use only SUBARU SUPER COOLANT.
If SUBARU SUPER COOLANT is diluted with another brand or type, the maintenance interval is shortened to that of the mixing coolant.
. Do not splash the engine coolant over painted parts. The alcohol contained in the engine coolant may damage the paint surface.
& Cooling Fan, Hose and Connections s11af03
Your vehicle employs an electric cooling fan which is thermostatically controlled to operate when the engine coolant reaches a specific temperature.
1 Normal operating range
If the radiator cooling fan does not operate even when the engine coolant temperature gauge exceeds the normal operating range, the cooling fan circuit may be defective. Refer to“ Engine Coolant Temperature Gauge” FP152.
Check the fuse and replace it if necessary. Refer to“ Fuses” FP492. If the fuse is not blown, have the cooling system checked by your SUBARU dealer.
If the frequent addition of coolant is necessary between vehicle service visits, it is recommended that you have your vehicle inspected by an authorized SUBARU dealer to check for leaks, damage, or looseness.
& Engine Coolant
! Checking the coolant level
1“ FULL” level mark 2“ LOW” level mark s11af02
s11af0201
Check the coolant level at each fuel stop.
1. Check the coolant level on the outside of the reservoir while the engine is cool.
2. If the level is close to or lower than the“ LOW” level mark, add coolant up to the“ FULL” level mark. If the reserve tank is empty, remove the radiator cap and refill coolant up to just below the filler neck as shown in the following illustration.
