430

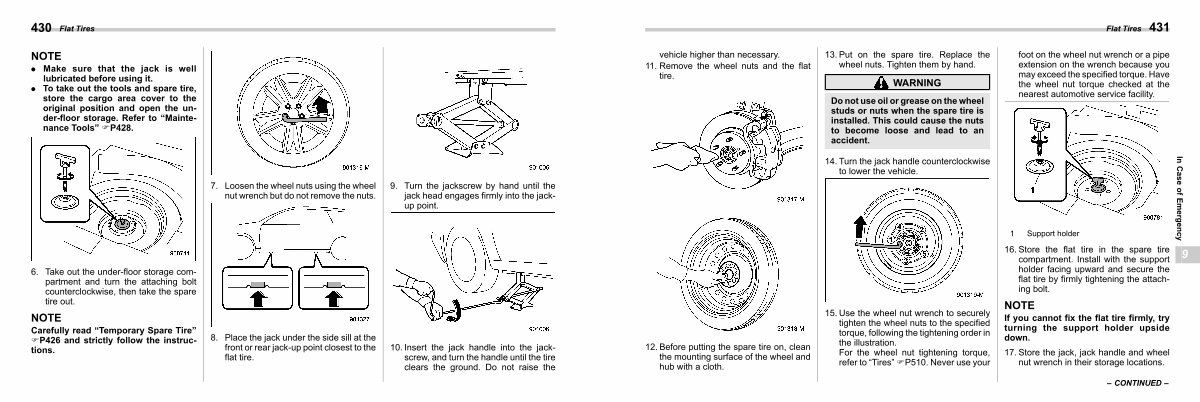

Flat Tires
NOTE
. Make sure that the jack is well lubricated before using it.
. To take out the tools and spare tire, store the cargo area cover to the original position and open the under-floor storage. Refer to“ Maintenance Tools” FP428.
7. Loosen the wheel nuts using the wheel nut wrench but do not remove the nuts.
9. Turn the jackscrew by hand until the jack head engages firmly into the jackup point.
6. Take out the under-floor storage compartment and turn the attaching bolt counterclockwise, then take the spare tire out.
NOTE
Carefully read“ Temporary Spare Tire” FP426 and strictly follow the instructions.
8. Place the jack under the side sill at the front or rear jack-up point closest to the flat tire.
10. Insert the jack handle into the jackscrew, and turn the handle until the tire clears the ground. Do not raise the
