416

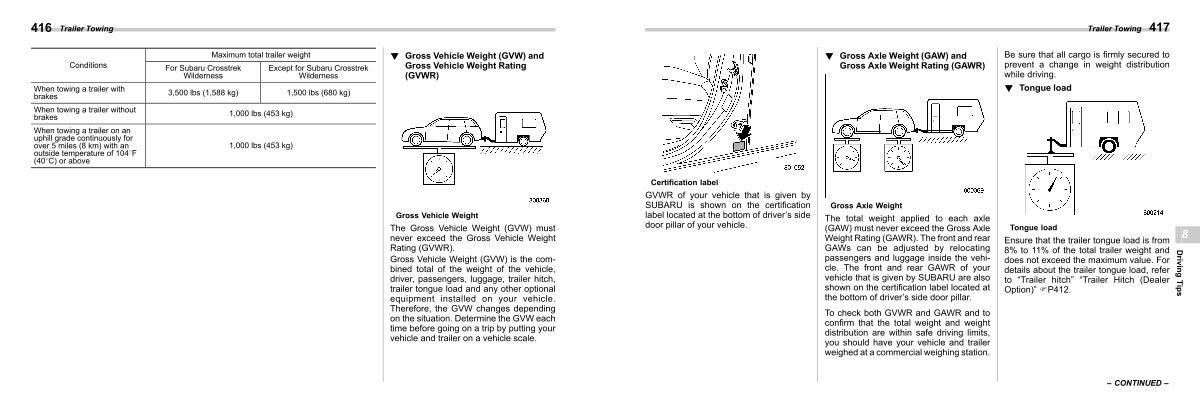

Trailer Towing
Conditions
When towing a trailer with brakes
When towing a trailer without brakes
When towing a trailer on an uphill grade continuously for over 5 miles( 8 km) with an outside temperature of 1048F( 408C) or above
For Subaru Crosstrek Wilderness
Maximum total trailer weight Except for Subaru Crosstrek Wilderness
3,500 lbs( 1,588 kg) 1,500 lbs( 680 kg)
1,000 lbs( 453 kg)
1,000 lbs( 453 kg)
! Gross Vehicle Weight( GVW) and Gross Vehicle Weight Rating( GVWR) s08al0202
Gross Vehicle Weight
The Gross Vehicle Weight( GVW) must never exceed the Gross Vehicle Weight Rating( GVWR).
Gross Vehicle Weight( GVW) is the combined total of the weight of the vehicle, driver, passengers, luggage, trailer hitch, trailer tongue load and any other optional equipment installed on your vehicle. Therefore, the GVW changes depending on the situation. Determine the GVW each time before going on a trip by putting your vehicle and trailer on a vehicle scale.
