Trailer Hitch( Dealer Option) 413
When towing a trailer without brakes Maximum gross trailer weight
1,000 lbs( 453 kg)
Maximum gross tongue weight
100 lbs( 45 kg)
When towing a trailer, refer to“ Trailer Towing” FP414.

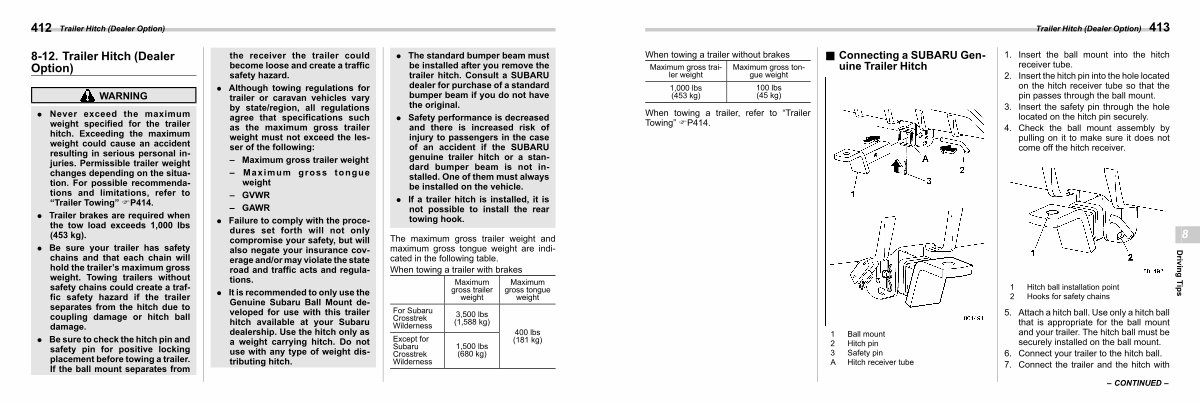

& Connecting a SUBARU Genuine Trailer Hitch s08ak01
1. Insert the ball mount into the hitch receiver tube.
2. Insert the hitch pin into the hole located on the hitch receiver tube so that the pin passes through the ball mount.
3. Insert the safety pin through the hole located on the hitch pin securely.
4. Check the ball mount assembly by pulling on it to make sure it does not come off the hitch receiver.
1 Ball mount 2 Hitch pin 3 Safety pin A Hitch receiver tube
1 Hitch ball installation point 2 Hooks for safety chains
5. Attach a hitch ball. Use only a hitch ball that is appropriate for the ball mount and your trailer. The hitch ball must be securely installed on the ball mount.
6. Connect your trailer to the hitch ball. 7. Connect the trailer and the hitch with
– CONTINUED –
8
Driving Tips
