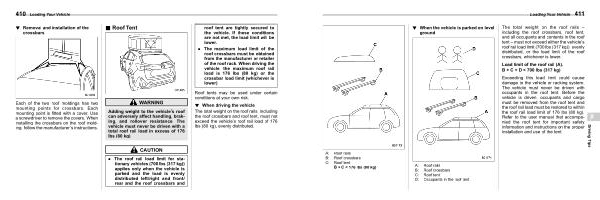

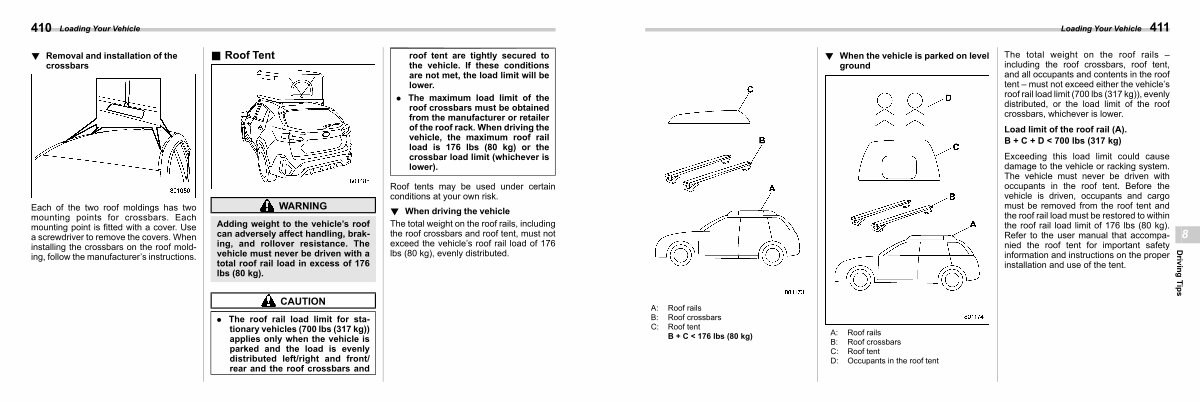

410
Loading Your Vehicle
! Removal and installation of the crossbars s08aj0602 |
|
|
|
& Roof Tent |
|
|
s08aj14 |
roof tent are tightly secured to the vehicle. If these conditions are not met, the load limit will be lower.
. The maximum load limit of the roof crossbars must be obtained from the manufacturer or retailer of the roof rack. When driving the vehicle, the maximum roof rail load is 176 lbs( 80 kg) or the crossbar load limit( whichever is lower).
|
Each of the two roof moldings has two mounting points for crossbars. Each mounting point is fitted with a cover. Use a screwdriver to remove the covers. When installing the crossbars on the roof molding, follow the manufacturer’ s instructions.
WARNING
Adding weight to the vehicle’ s roof can adversely affect handling, braking, and rollover resistance. The vehicle must never be driven with a total roof rail load in excess of 176 lbs( 80 kg).
Roof tents may be used under certain conditions at your own risk.
! When driving the vehicle s08aj1401
The total weight on the roof rails, including the roof crossbars and roof tent, must not exceed the vehicle’ s roof rail load of 176 lbs( 80 kg), evenly distributed.
CAUTION
. The roof rail load limit for stationary vehicles( 700 lbs( 317 kg)) applies only when the vehicle is parked and the load is evenly distributed left / right and front / rear and the roof crossbars and
