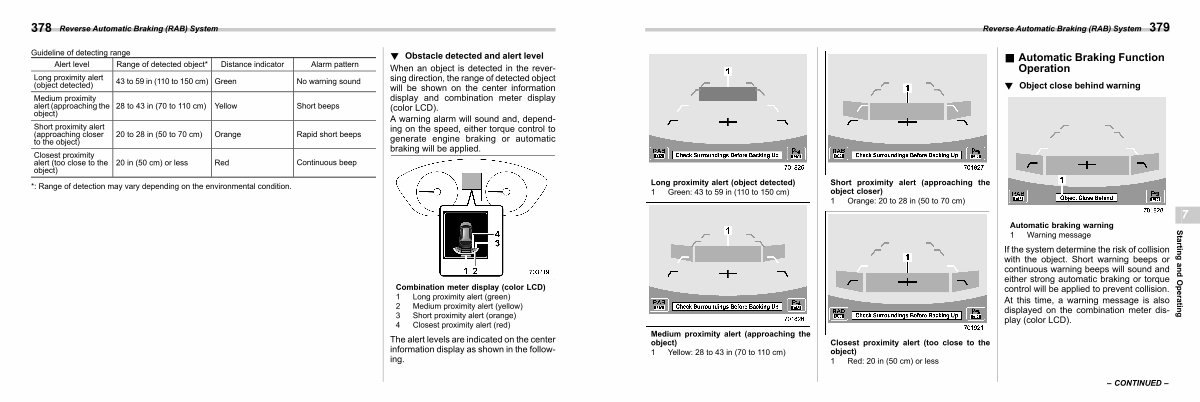

Long proximity alert( object detected) 1 Green: 43 to 59 in( 110 to 150 cm) |
Short proximity alert( approaching the object closer)
1 Orange: 20 to 28 in( 50 to 70 cm)
|
Automatic braking warning 1 Warning message
If the system determine the risk of collision with the object. Short warning beeps or continuous warning beeps will sound and either strong automatic braking or torque control will be applied to prevent collision.
At this time, a warning message is also displayed on the combination meter display( color LCD).
|
7
Starting and Operating
|
|||||
|
Medium proximity alert( approaching the object)
1 Yellow: 28 to 43 in( 70 to 110 cm)
|
Closest proximity alert( too close to the object) 1 Red: 20 in( 50 cm) or less |
|||||||
– CONTINUED – |
