358
Rear View Camera
! Warning buzzer s07bh0301
The buzzer will sound when the engine hood is opened while the engine is stopped by the Auto Start Stop system.
When this occurs, the buzzer will stop sounding when the following operations are performed.
. The engine is restarted by normal operation.( Refer to“ Preparing to Drive” FP312.)
. The ignition switch is turned to the“ OFF” position.
! Display of warning messages s07bh0302
If a warning message is displayed on the combination meter display( color LCD) while driving, a malfunction may have occurred in the Auto Start Stop system. In this case, the Auto Start Stop warning light will illuminate. Have your vehicle inspected at a SUBARU dealer as soon as possible.

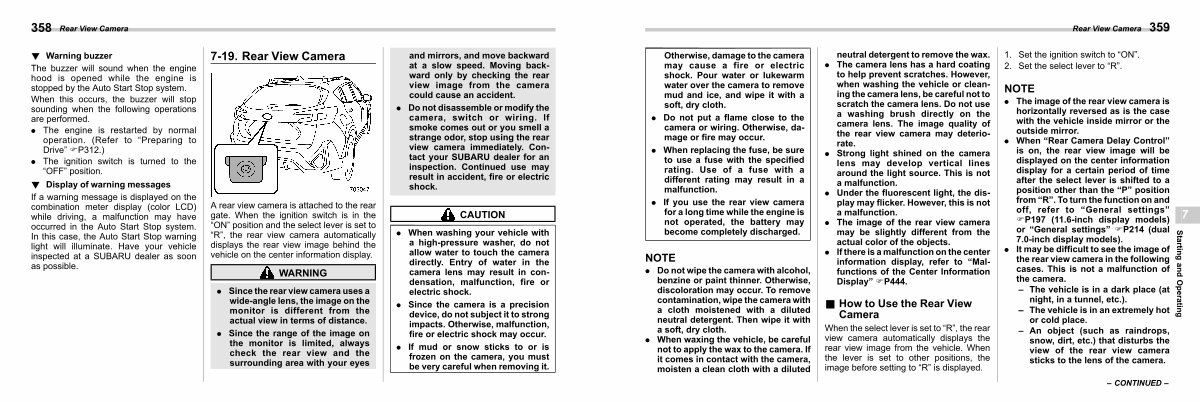

7-19. Rear View Camera s07br
A rear view camera is attached to the rear gate. When the ignition switch is in the“ ON” position and the select lever is set to“ R”, the rear view camera automatically displays the rear view image behind the vehicle on the center information display.
WARNING
. Since the rear view camera uses a wide-angle lens, the image on the monitor is different from the actual view in terms of distance.
. Since the range of the image on the monitor is limited, always check the rear view and the surrounding area with your eyes and mirrors, and move backward at a slow speed. Moving backward only by checking the rear view image from the camera could cause an accident.
. Do not disassemble or modify the camera, switch or wiring. If smoke comes out or you smell a strange odor, stop using the rear view camera immediately. Contact your SUBARU dealer for an inspection. Continued use may result in accident, fire or electric shock.
CAUTION
. When washing your vehicle with a high-pressure washer, do not allow water to touch the camera directly. Entry of water in the camera lens may result in condensation, malfunction, fire or electric shock.
. Since the camera is a precision device, do not subject it to strong impacts. Otherwise, malfunction, fire or electric shock may occur.
. If mud or snow sticks to or is frozen on the camera, you must be very careful when removing it.
