282
Interior Light

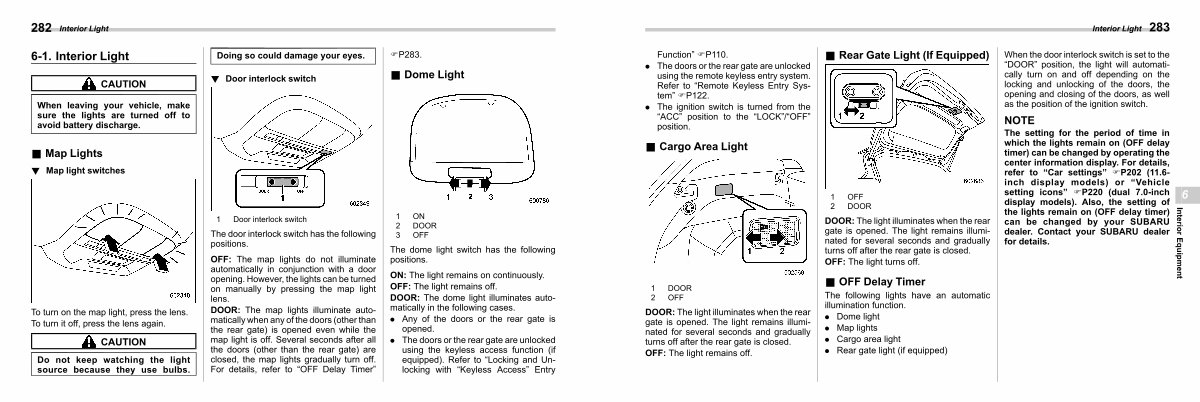

6-1. Interior Light |
Doing so could damage your eyes. |
FP283. |
CAUTION |
s06aa |
|
|
|
|
! Door interlock switch |
s06aa0602 |
& Dome Light |
|
s06aa01 |
When leaving your vehicle, make sure the lights are turned off to avoid battery discharge.
& Map Lights
! Map light switches s06aa06
s06aa0606
To turn on the map light, press the lens. To turn it off, press the lens again.
CAUTION
Do not keep watching the light source because they use bulbs.
1 Door interlock switch
The door interlock switch has the following positions.
OFF: The map lights do not illuminate automatically in conjunction with a door opening. However, the lights can be turned on manually by pressing the map light lens.
DOOR: The map lights illuminate automatically when any of the doors( other than the rear gate) is opened even while the map light is off. Several seconds after all the doors( other than the rear gate) are closed, the map lights gradually turn off. For details, refer to“ OFF Delay Timer”
1 ON 2 DOOR 3 OFF
The dome light switch has the following positions.
ON: The light remains on continuously. OFF: The light remains off.
DOOR: The dome light illuminates automatically in the following cases.
. Any of the doors or the rear gate is opened.
. The doors or the rear gate are unlocked using the keyless access function( if equipped). Refer to“ Locking and Unlocking with“ Keyless Access” Entry
