272

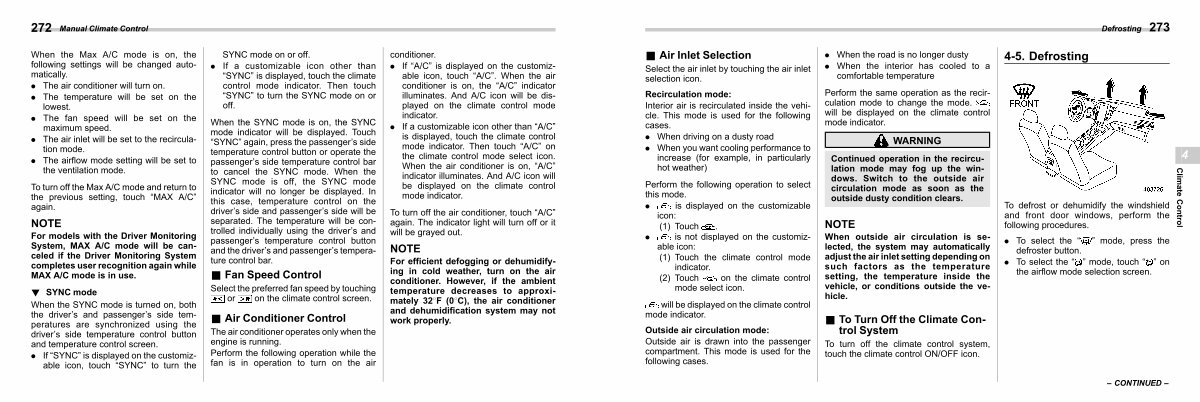

Manual Climate Control
When the Max A / C mode is on, the following settings will be changed automatically.
. The air conditioner will turn on.
. The temperature will be set on the lowest.
. The fan speed will be set on the maximum speed.
. The air inlet will be set to the recirculation mode.
. The airflow mode setting will be set to the ventilation mode.
To turn off the Max A / C mode and return to the previous setting, touch“ MAX A / C” again.
NOTE
For models with the Driver Monitoring System, MAX A / C mode will be canceled if the Driver Monitoring System completes user recognition again while MAX A / C mode is in use.
! SYNC mode s04aj0207
When the SYNC mode is turned on, both the driver’ s and passenger’ s side temperatures are synchronized using the driver’ s side temperature control button and temperature control screen.
. If“ SYNC” is displayed on the customizable icon, touch“ SYNC” to turn the
SYNC mode on or off.
. If a customizable icon other than“ SYNC” is displayed, touch the climate control mode indicator. Then touch“ SYNC” to turn the SYNC mode on or off.
When the SYNC mode is on, the SYNC mode indicator will be displayed. Touch“ SYNC” again, press the passenger’ s side temperature control button or operate the passenger’ s side temperature control bar to cancel the SYNC mode. When the SYNC mode is off, the SYNC mode indicator will no longer be displayed. In this case, temperature control on the driver’ s side and passenger’ s side will be separated. The temperature will be controlled individually using the driver’ s and passenger’ s temperature control button and the driver’ s and passenger’ s temperature control bar.
& Fan Speed Control s04aj03
Select the preferred fan speed by touching or on the climate control screen.
& Air Conditioner Control s04aj04
The air conditioner operates only when the engine is running.
Perform the following operation while the fan is in operation to turn on the air conditioner.
. If“ A / C” is displayed on the customizable icon, touch“ A / C”. When the air conditioner is on, the“ A / C” indicator illuminates. And A / C icon will be displayed on the climate control mode indicator.
. If a customizable icon other than“ A / C” is displayed, touch the climate control mode indicator. Then touch“ A / C” on the climate control mode select icon. When the air conditioner is on,“ A / C” indicator illuminates. And A / C icon will be displayed on the climate control mode indicator.
To turn off the air conditioner, touch“ A / C” again. The indicator light will turn off or it will be grayed out.
NOTE
For efficient defogging or dehumidifying in cold weather, turn on the air conditioner. However, if the ambient temperature decreases to approximately 328F( 08C), the air conditioner and dehumidification system may not work properly.
