Automatic Climate Control Operation 267 |
|||||||||
4-3. Automatic Climate Control Operation |
s04ai

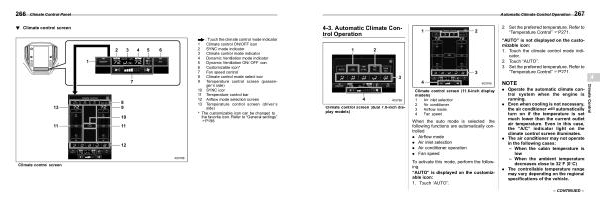

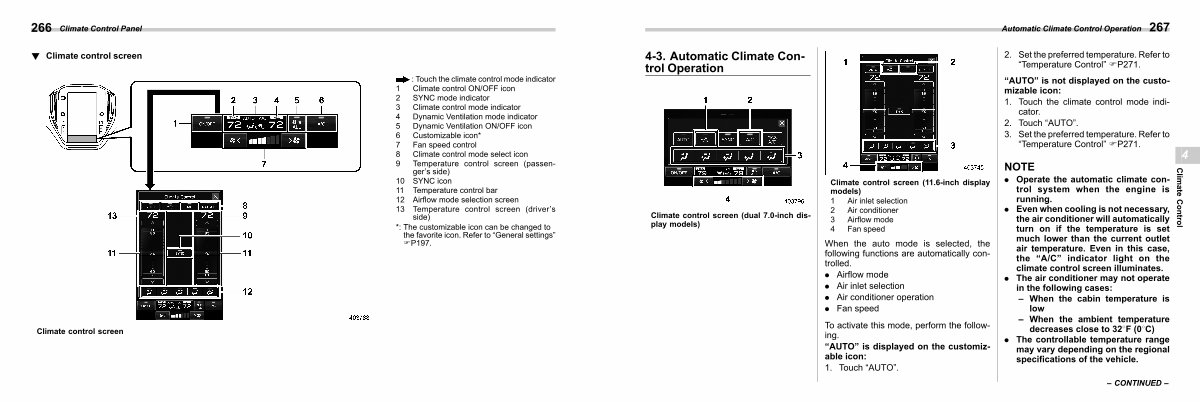

Climate control screen( dual 7.0-inch display models)
|
Climate control screen( 11.6-inch display models)
1 Air inlet selection 2 Air conditioner 3 Airflow mode 4 Fan speed
When the auto mode is selected, the following functions are automatically controlled.
. Airflow mode. Air inlet selection. Air conditioner operation. Fan speed
To activate this mode, perform the following.
“ AUTO” is displayed on the customizable icon:
1. Touch“ AUTO”.
|
2. Set the preferred temperature. Refer to“ Temperature Control” FP271.
“ AUTO” is not displayed on the customizable icon:
1. Touch the climate control mode indicator.
2. Touch“ AUTO”.
3. Set the preferred temperature. Refer to“ Temperature Control” FP271.
NOTE
. Operate the automatic climate control system when the engine is running.
. Even when cooling is not necessary, the air conditioner will automatically turn on if the temperature is set much lower than the current outlet air temperature. Even in this case, the“ A / C” indicator light on the climate control screen illuminates.
. The air conditioner may not operate in the following cases: – When the cabin temperature is low – When the ambient temperature decreases close to 328F( 08C)
. The controllable temperature range may vary depending on the regional specifications of the vehicle.
|
4
Climate Control
|
|||||
– CONTINUED – |
