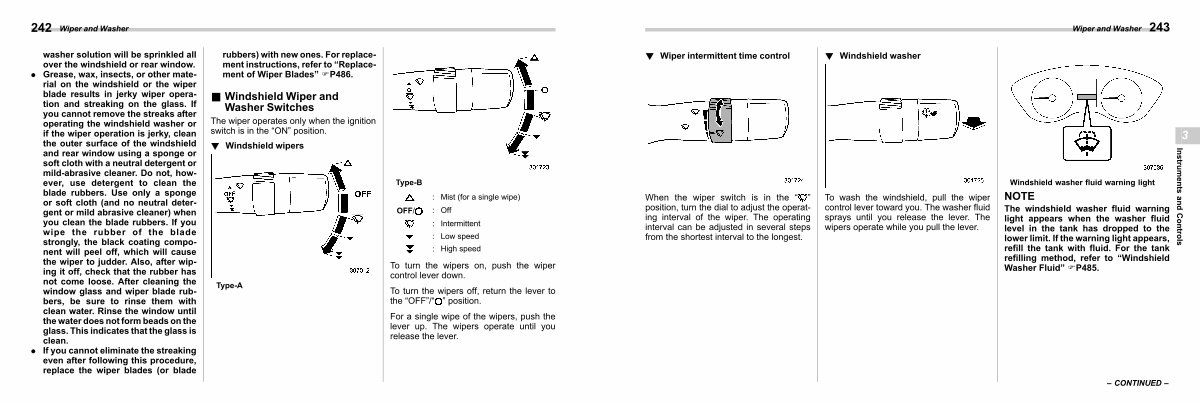

242
Wiper and Washer
washer solution will be sprinkled all over the windshield or rear window.
. Grease, wax, insects, or other material on the windshield or the wiper blade results in jerky wiper operation and streaking on the glass. If you cannot remove the streaks after operating the windshield washer or if the wiper operation is jerky, clean the outer surface of the windshield and rear window using a sponge or soft cloth with a neutral detergent or mild-abrasive cleaner. Do not, however, use detergent to clean the blade rubbers. Use only a sponge or soft cloth( and no neutral detergent or mild abrasive cleaner) when you clean the blade rubbers. If you wipe the rubber of the blade strongly, the black coating component will peel off, which will cause the wiper to judder. Also, after wiping it off, check that the rubber has not come loose. After cleaning the window glass and wiper blade rubbers, be sure to rinse them with clean water. Rinse the window until the water does not form beads on the glass. This indicates that the glass is clean.
. If you cannot eliminate the streaking even after following this procedure, replace the wiper blades( or blade
rubbers) with new ones. For replacement instructions, refer to“ Replacement of Wiper Blades” FP486.
& Windshield Wiper and Washer Switches s03am01
The wiper operates only when the ignition switch is in the“ ON” position.
! Windshield wipers
Type-A s03am0101
Type-B
|
: |
Mist( for a single wipe) |
OFF / |
: |
Off |
|
: |
Intermittent |
|
: |
Low speed |
|
: |
High speed |
To turn the wipers on, push the wiper control lever down.
To turn the wipers off, return the lever to the“ OFF”/“” position.
For a single wipe of the wipers, push the lever up. The wipers operate until you release the lever.
