About EyeSight
( 23 )
( 24 )
( 25 )

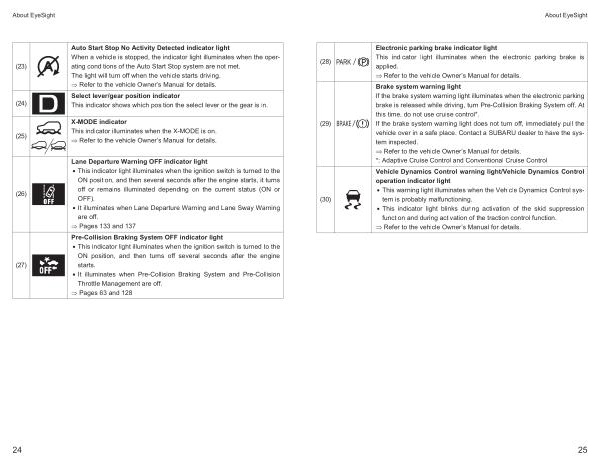

Auto Start Stop No Activity Detected indicator light When a vehicle is stopped , the indicator light illuminates when the operating conditions of the Auto Start Stop system are not met . The light will turn off when the vehicle starts driving .
� Refer to the vehicle Owner ’ s Manual for details . Select lever / gear position indicator This indicator shows which position the select lever or the gear is in .
X-MODE indicator This indicator illuminates when the X-MODE is on . � Refer to the vehicle Owner ’ s Manual for details .
( 26 )
( 27 )
Lane Departure Warning OFF indicator light
• This indicator light illuminates when the ignition switch is turned to the ON position , and then several seconds after the engine starts , it turns off or remains illuminated depending on the current status ( ON or OFF ).
• It illuminates when Lane Departure Warning and Lane Sway Warning are off .
� Pages 133 and 137
Pre-Collision Braking System OFF indicator light
• This indicator light illuminates when the ignition switch is turned to the ON position , and then turns off several seconds after the engine starts .
• It illuminates when Pre-Collision Braking System and Pre-Collision Throttle Management are off .
� Pages 63 and 128
24
