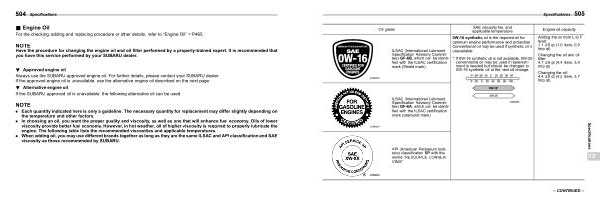

Specifications 505
Oil grade
ILSAC ( International Lubricant Specification Advisory Committee ) GF-6B , which can be identified with the ILSAC certification mark ( Shield mark )
SAE viscosity No . and applicable temperature
0W-16 synthetic oil is the required oil for optimum engine performance and protection . Conventional oil may be used if synthetic oil is unavailable .
*: If 0W-16 synthetic oil is not available , 0W-20 conventional oil may be used if replenishment is needed but should be changed to 0W-16 synthetic oil at the next oil change .
Engine oil capacity
· Adding the oil from L to F level : 1.1 US qt ( 1.0 liters , 0.9 Imp qt )
· Changing the oil and oil filter : 4.7 US qt ( 4.4 liters , 3.9 Imp qt )
· Changing the oil : 4.4 US qt ( 4.2 liters , 3.7 Imp qt )
ILSAC ( International Lubricant Specification Advisory Committee ) GF-6A , which can be identified with the ILSAC certification mark ( Starburst mark )
API ( American Petroleum Institute ) classification SP with the words “ RESOURCE CONSER- VING ”
Specifications
12
– CONTINUED –
