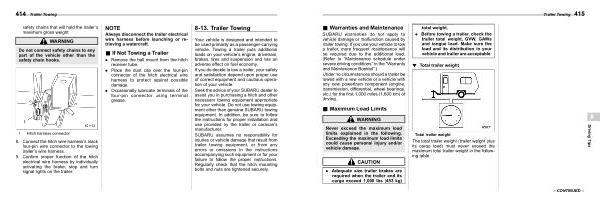

Trailer Towing 415
& Warranties and Maintenance s08al01
SUBARU warranties do not apply to vehicle damage or malfunction caused by trailer towing . If you use your vehicle to tow a trailer , more frequent maintenance will be required due to the additional load . ( Refer to “ Maintenance schedule under severe driving conditions ” in the “ Warranty and Maintenance Booklet ”.)
Under no circumstances should a trailer be towed with a new vehicle or a vehicle with any new powertrain component ( engine , transmission , differential , wheel bearings , etc .) for the first 1,000 miles ( 1,600 km ) of driving .
total weight .
. Before towing a trailer , check the trailer total weight , GVW , GAWs and tongue load . Make sure the load and its distribution in your vehicle and trailer are acceptable .
! Total trailer weight s08al0201
& Maximum Load Limits WARNING s08al02
8
Never exceed the maximum load limits explained in the following . Exceeding the maximum load limits could cause personal injury and / or vehicle damage .
CAUTION
. Adequate size trailer brakes are required when the trailer and its cargo exceed 1,000 lbs ( 453 kg )
Total trailer weight
The total trailer weight ( trailer weight plus its cargo load ) must never exceed the maximum total trailer weight in the following table .
Driving Tips
– CONTINUED –
