378

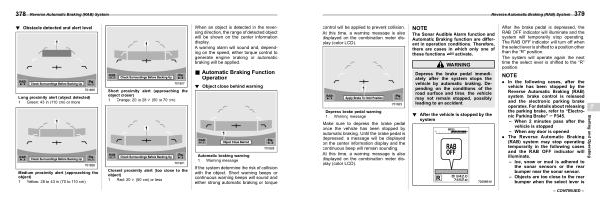

Reverse Automatic Braking ( RAB ) System
! Obstacle detected and alert level s07bn0301
Long proximity alert ( object detected ) 1 Green : 43 in ( 110 cm ) or more
Short proximity alert ( approaching the object closer )
1 Orange : 20 to 28 in ( 50 to 70 cm )
When an object is detected in the reversing direction , the range of detected object will be shown on the center information display .
A warning alarm will sound and , depending on the speed , either torque control to generate engine braking or automatic braking will be applied .
& Automatic Braking Function Operation s07bn08
! Object close behind warning s07bn0801
Medium proximity alert ( approaching the object ) 1 Yellow : 28 to 43 in ( 70 to 110 cm )
Closest proximity alert ( too close to the object ) 1 Red : 20 in ( 50 cm ) or less
Automatic braking warning 1 Warning message
If the system determine the risk of collision with the object . Short warning beeps or continuous warning beeps will sound and either strong automatic braking or torque
