344

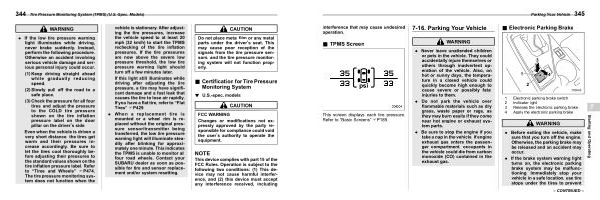

Tire Pressure Monitoring System ( TPMS ) ( U . S . -Spec . Models )
WARNING
. If the low tire pressure warning light illuminates while driving , never brake suddenly . Instead , perform the following procedure . Otherwise an accident involving serious vehicle damage and serious personal injury could occur .
( 1 ) Keep driving straight ahead while gradually reducing speed .
( 2 ) Slowly pull off the road to a safe place .
( 3 ) Check the pressure for all four tires and adjust the pressure to the COLD tire pressure shown on the tire inflation pressure label on the door pillar on the driver ’ s side .
Even when the vehicle is driven a very short distance , the tires get warm and their pressures increase accordingly . Be sure to let the tires cool thoroughly before adjusting their pressures to the standard values shown on the tire inflation pressure label . Refer to “ Tires and Wheels ” FP474 . The tire pressure monitoring system does not function when the
vehicle is stationary . After adjusting the tire pressures , increase the vehicle speed to at least 20 mph ( 32 km / h ) to start the TPMS rechecking of the tire inflation pressures . If the tire pressures are now above the severe low pressure threshold , the low tire pressure warning light should turn off a few minutes later .
If this light still illuminates while driving after adjusting the tire pressure , a tire may have significant damage and a fast leak that causes the tire to lose air rapidly . If you have a flat tire , refer to “ Flat Tires ” FP429 .
. When a replacement tire is mounted or a wheel rim is replaced without the original pressure sensor / transmitter being transferred , the low tire pressure warning light will illuminate steadily after blinking for approximately one minute . This indicates the TPMS is unable to monitor all four road wheels . Contact your SUBARU dealer as soon as possible for tire and sensor replacement and / or system resetting .
CAUTION
Do not place metal film or any metal parts under the driver ’ s seat . This may cause poor reception of the signals from the tire pressure sensors , and the tire pressure monitoring system will not function properly .
& Certification for Tire Pressure Monitoring System s07ao01
! U . S . -spec. models s07ao0101
CAUTION
FCC WARNING
Changes or modifications not expressly approved by the party responsible for compliance could void the user ’ s authority to operate the equipment .
NOTE
This device complies with part 15 of the FCC Rules . Operation is subject to the following two conditions : ( 1 ) This device may not cause harmful interference , and ( 2 ) this device must accept any interference received , including
