Manual Climate Control 269

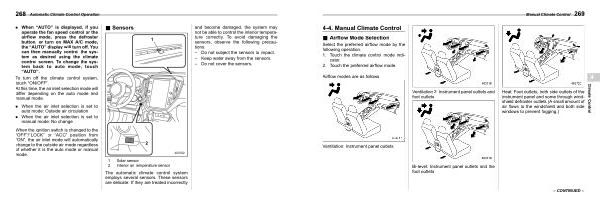

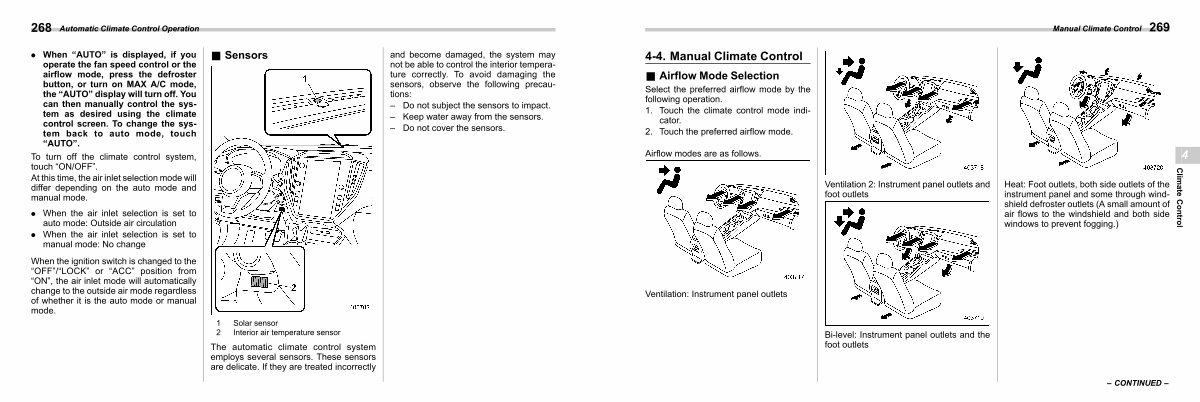

4-4 . Manual Climate Control s04aj
& Airflow Mode Selection s04aj01
Select the preferred airflow mode by the following operation .
1 . Touch the climate control mode indicator .
2 . Touch the preferred airflow mode .
Airflow modes are as follows .
4
Ventilation 2 : Instrument panel outlets and foot outlets
Heat : Foot outlets , both side outlets of the instrument panel and some through windshield defroster outlets ( A small amount of air flows to the windshield and both side windows to prevent fogging .)
Climate Control
Ventilation : Instrument panel outlets
Bi-level : Instrument panel outlets and the foot outlets
– CONTINUED –
