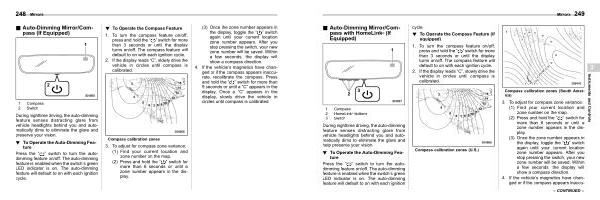

Mirrors 249 |
||||||||||||
& Auto-Dimming Mirror / Compass with HomeLink ® ( If Equipped ) s03ap07 |
1 Compass 2 HomeLink ® buttons 3 Switch
During nighttime driving , the auto-dimming feature senses distracting glare from vehicle headlights behind you and automatically dims to eliminate the glare and help preserve your vision .
! To Operate the Auto-Dimming Feature s03ap0705
Press the “ ” switch to turn the autodimming feature on / off . The auto-dimming feature is enabled when the switch ’ s green LED indicator is on . The auto-dimming feature will default to on with each ignition
|
cycle .
! To Operate the Compass Feature ( if equipped ) s03ap0706
1 . To turn the compass feature on / off , press and hold the “ ” switch for more than 3 seconds or until the display turns on / off . The compass feature will default to on with each ignition cycle .
2 . If the display reads “ C ”, slowly drive the vehicle in circles until compass is calibrated .
Compass calibration zones ( U . S .)
|
Compass calibration zones ( South America )
3 . To adjust for compass zone variance : ( 1 ) Find your current location and zone number on the map .
( 2 ) Press and hold the “ ” switch for more than 6 seconds or until a zone number appears in the display .
( 3 ) Once the zone number appears in the display , toggle the “ ” switch again until your current location zone number appears . After you stop pressing the switch , your new zone number will be saved . Within a few seconds , the display will show a compass direction .
4 . If the vehicle ’ s magnetics have changed or if the compass appears inaccu-
|
3
Instruments and Controls
|
||||||||
– CONTINUED – |
