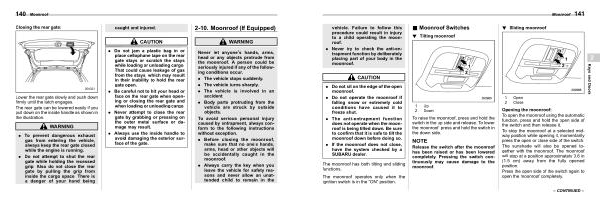

Moonroof 141 |
|||||||||
|
vehicle . Failure to follow this procedure could result in injury to a child operating the moonroof .
. Never try to check the anti-entrapment function by deliberately placing part of your body in the moonroof .
CAUTION
. Do not sit on the edge of the open moonroof .
. Do not operate the moonroof if falling snow or extremely cold conditions have caused it to freeze shut .
. The anti-entrapment function does not operate when the moonroof is being tilted down . Be sure to confirm that it is safe to tilt the moonroof down before doing so .
. If the moonroof does not close , have the system checked by a SUBARU dealer .
|
The moonroof has both tilting and sliding functions .
The moonroof operates only when the ignition switch is in the “ ON ” position .
|
& Moonroof Switches
! Tilting moonroof
1 Up 2 Down
s02ak02
|
s02ak0201
To raise the moonroof , press and hold the switch in the up side and release . To lower the moonroof , press and hold the switch in the down side .
NOTE
Release the switch after the moonroof has been raised or has been lowered completely . Pressing the switch continuously may cause damage to the moonroof .
|
! Sliding moonroof
1 Open 2 Close
s02ak0202
|
Opening the moonroof :
To open the moonroof using the automatic function , press and hold the open side of the switch and then release it .
To stop the moonroof at a selected midway position while opening it , momentarily press the open or close side of the switch .
The sunshade will also be opened together with the moonroof . The moonroof will stop at a position approximately 0.6 in ( 1.5 cm ) away from the fully opened position .
Press the open side of the switch again to open the moonroof completely .
|
2
Keys and Doors
|
|||
– CONTINUED – |
