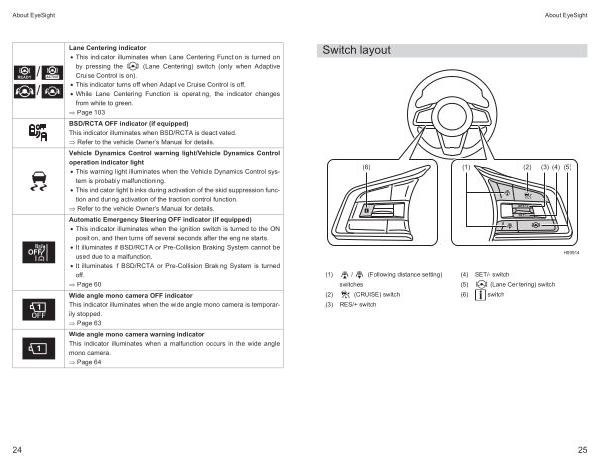

About EyeSight
/ /
Lane Centering indicator
• This indicator illuminates when Lane Centering Function is turned on by pressing the ( Lane Centering ) switch ( only when Adaptive Cruise Control is on ).
• This indicator turns off when Adaptive Cruise Control is off .
• While Lane Centering Function is operating , the indicator changes from white to green .
� Page 103 BSD / RCTA OFF indicator ( if equipped ) This indicator illuminates when BSD / RCTA is deactivated . � Refer to the vehicle Owner ’ s Manual for details . Vehicle Dynamics Control warning light / Vehicle Dynamics Control operation indicator light
• This warning light illuminates when the Vehicle Dynamics Control system is probably malfunctioning .
• This indicator light blinks during activation of the skid suppression function and during activation of the traction control function .
� Refer to the vehicle Owner ’ s Manual for details . Automatic Emergency Steering OFF indicator ( if equipped )
• This indicator illuminates when the ignition switch is turned to the ON position , and then turns off several seconds after the engine starts .
• It illuminates if BSD / RCTA or Pre-Collision Braking System cannot be used due to a malfunction .
• It illuminates if BSD / RCTA or Pre-Collision Braking System is turned off .
� Page 60 Wide angle mono camera OFF indicator This indicator illuminates when the wide angle mono camera is temporarily stopped .
� Page 63 Wide angle mono camera warning indicator This indicator illuminates when a malfunction occurs in the wide angle mono camera .
� Page 64
24
