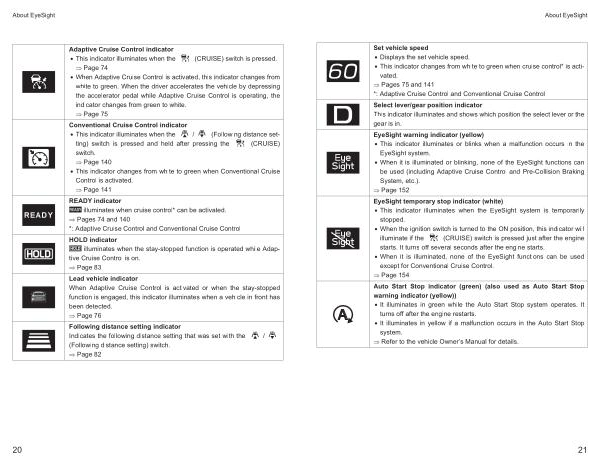

About EyeSight
Set vehicle speed
• Displays the set vehicle speed .
• This indicator changes from white to green when cruise control * is activated .
� Pages 75 and 141 *: Adaptive Cruise Control and Conventional Cruise Control Select lever / gear position indicator This indicator illuminates and shows which position the select lever or the gear is in . EyeSight warning indicator ( yellow )
• This indicator illuminates or blinks when a malfunction occurs in the EyeSight system .
• When it is illuminated or blinking , none of the EyeSight functions can be used ( including Adaptive Cruise Control and Pre-Collision Braking System , etc .).
� Page 152
EyeSight temporary stop indicator ( white )
• This indicator illuminates when the EyeSight system is temporarily stopped .
• When the ignition switch is turned to the ON position , this indicator will illuminate if the ( CRUISE ) switch is pressed just after the engine starts . It turns off several seconds after the engine starts .
• When it is illuminated , none of the EyeSight functions can be used except for Conventional Cruise Control .
� Page 154 Auto Start Stop indicator ( green ) ( also used as Auto Start Stop warning indicator ( yellow ))
• It illuminates in green while the Auto Start Stop system operates . It turns off after the engine restarts .
• It illuminates in yellow if a malfunction occurs in the Auto Start Stop system .
� Refer to the vehicle Owner ’ s Manual for details .
21
