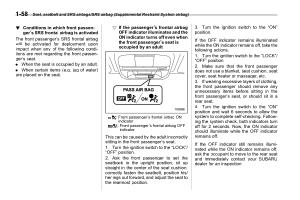

1-58
Seat , seatbelt and SRS airbags / SRS airbag ( Supplemental Restraint System airbag )
! Conditions in which front passenger ’ s SRS frontal airbag is activated
S01AH0205
The front passenger ’ s SRS frontal airbag will be activated for deployment upon impact when any of the following conditions are met regarding the front passenger ’ s seat .
. When the seat is occupied by an adult .
. When certain items ( e . g . jug of water ) are placed on the seat .
! If the passenger ’ s frontal airbag OFF indicator illuminates and the ON indicator turns off even when the front passenger ’ s seat is occupied by an adult
S01AH020501
: Front passenger ’ s frontal airbag ON indicator
: Front passenger ’ s frontal airbag OFF indicator
This can be caused by the adult incorrectly sitting in the front passenger ’ s seat .
1 . Turn the ignition switch to the “ LOCK ”/ “ OFF ” position .
2 . Ask the front passenger to set the seatback to the upright position , sit up straight in the center of the seat cushion , correctly fasten the seatbelt , position his / her legs out forward , and adjust the seat to the rearmost position .
3 . Turn the ignition switch to the “ ON ” position .
If the OFF indicator remains illuminated while the ON indicator remains off , take the following actions .
1 . Turn the ignition switch to the “ LOCK ”/ “ OFF ” position .
2 . Make sure that the front passenger does not use a blanket , seat cushion , seat cover , seat heater or massager , etc .
3 . If wearing excessive layers of clothing , the front passenger should remove any unnecessary items before sitting in the front passenger ’ s seat , or should sit in a rear seat .
4 . Turn the ignition switch to the “ ON ” position and wait 6 seconds to allow the system to complete self-checking . Following the system check , both indicators turn off for 2 seconds . Now , the ON indicator should illuminate while the OFF indicator remains off .
If the OFF indicator still remains illuminated while the ON indicator remains off , ask the occupant to move to the rear seat and immediately contact your SUBARU dealer for an inspection .
