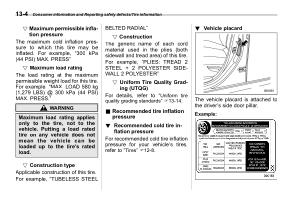

13-4
Consumer information and Reporting safety defects / Tire information
! Maximum permissible inflation pressure
S13AB010301
The maximum cold inflation pressure to which this tire may be inflated . For example , “ 300 kPa ( 44 PSI ) MAX . PRESS ”
! Maximum load rating
S13AB010302
The load rating at the maximum permissible weight load for this tire . For example , “ MAX . LOAD 580 kg ( 1,279 LBS ) @ 300 kPa ( 44 PSI ) MAX . PRESS .”
WARNING
Maximum load rating applies only to the tire , not to the vehicle . Putting a load rated tire on any vehicle does not mean the vehicle can be loaded up to the tire ’ s rated load .
! Construction type
S13AB010303
Applicable construction of this tire . For example , “ TUBELESS STEEL
BELTED RADIAL ” ! Construction
S13AB010304
The generic name of each cord material used in the plies ( both sidewall and tread area ) of this tire .
For example , “ PLIES : TREAD 2 STEEL + 2 POLYESTER SIDE- WALL 2 POLYESTER ”
! Uniform Tire Quality Grading ( UTQG )
S13AB010305
For details , refer to “ Uniform tire quality grading standards ” F13-14 .
& Recommended tire inflation pressure
S13AB02
! Recommended cold tire inflation pressure
S13AB0201
For recommended cold tire inflation pressure for your vehicle ’ s tires , refer to “ Tires ” F12-8 .
! Vehicle placard
S13AB0202
The vehicle placard is attached to the driver ’ s side door pillar .
Example :
