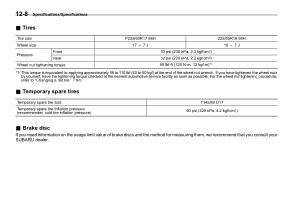

12-8
Specifications / Specifications
& Tires
S12AA05
Tire size |
P225 / 60R17 98H |
225 / 55R18 98H |
Wheel size |
17 6 7 J |
18 6 7 J |
Pressure |
Front
Rear
|
33 psi ( 230 kPa , 2.3 kgf / cm 2 )
32 psi ( 220 kPa , 2.2 kgf / cm 2 )
|
Wheel nut tightening torque |
89 lbf · ft ( 120 N · m , 12 kgf · m )* 1
|
* 1 : This torque is equivalent to applying approximately 88 to 110 lbf ( 40 to 50 kgf ) at the end of the wheel nut wrench . If you have tightened the wheel nuts by yourself , have the tightening torque checked at the nearest automotive service facility as soon as possible . For the wheel nut tightening procedure , refer to “ Changing a flat tire ” F9-5 .
& Temporary spare tires
S12AA15
Temporary spare tire size Temporary spare tire inflation pressure ( recommended cold tire inflation pressure )
T145 / 80 D17 60 psi ( 420 kPa , 4.2 kgf / cm 2 )
& Brake disc
S12AA18
If you need information on the usage limit value of brake discs and the method for measuring them , we recommend that you consult your SUBARU dealer .
