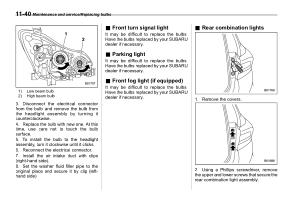

11-40 Maintenance and service / Replacing bulbs
& Front turn signal light
S11BE03
It may be difficult to replace the bulbs . Have the bulbs replaced by your SUBARU dealer if necessary .
& Parking light
S11BE02
It may be difficult to replace the bulbs . Have the bulbs replaced by your SUBARU dealer if necessary .
& Rear combination lights
S11BE05
1 ) |
Low beam bulb |
2 ) |
High beam bulb |
3 . Disconnect the electrical connector from the bulb and remove the bulb from the headlight assembly by turning it counterclockwise .
4 . Replace the bulb with new one . At this time , use care not to touch the bulb surface .
5 . To install the bulb to the headlight assembly , turn it clockwise until it clicks .
6 . Reconnect the electrical connector .
7 . Install the air intake duct with clips ( right-hand side ).
8 . Set the washer fluid filler pipe to the original place and secure it by clip ( lefthand side ).
& Front fog light ( if equipped )
S11BE04
It may be difficult to replace the bulbs . Have the bulbs replaced by your SUBARU dealer if necessary .
1 . Remove the covers .
2 . Using a Phillips screwdriver , remove the upper and lower screws that secure the rear combination light assembly .
