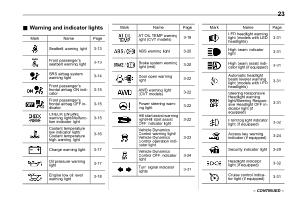

& Warning and indicator lights
S00AE06
Mark Name Page
Seatbelt warning light 3-13
Front passenger ’ s seatbelt warning light
SRS airbag system warning light
Front passenger ’ s frontal airbag ON indicator
Front passenger ’ s frontal airbag OFF indicator
CHECK ENGINE warning light / Malfunction indicator light
Coolant temperature low indicator light / Coolant temperature high warning light
3-13
3-14
3-15
3-15
3-15
3-16
Charge warning light 3-17
Oil pressure warning light
Engine low oil level warning light
3-17
3-18
Mark Name Page
/
AT OIL TEMP warning light ( CVT models )
3-18
ABS warning light 3-20
Brake system warning light ( red )
Door open warning light
AWD warning light ( CVT models )
Power steering warning light
Hill start assist warning light / Hill start assist OFF indicator light
Vehicle Dynamics Control warning light / Vehicle Dynamics Control operation indicator light
Vehicle Dynamics Control OFF indicator light
Turn signal indicator lights
3-20
3-22
3-22
3-22
3-22
3-23
3-24
3-31
Mark |
Name |
Page |
|
LED headlight warning light ( models with LED headlights ) |
3-31 |
High beam indicator light
High beam assist indicator light ( if equipped )
Automatic headlight beam leveler warning light ( models with LED headlights )
Steering Responsive Headlight warning light / Steering Responsive Headlight OFF indicator light ( if equipped )
Front fog light indicator light ( if equipped )
Access key warning indicator ( if equipped )
3-31
3-31
3-31
3-31
3-32
3-24
Security indicator light 3-29
Headlight indicator light ( if equipped )
Cruise control indicator light ( if equipped )
23
3-32
3-31
– CONTINUED –
