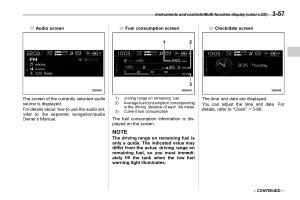

Instruments and controls / Multi-function display ( color LCD ) 3-57
! Audio screen |
S03BP101907 |
! Fuel consumption screen
S03BP101908
|
! Clock / date screen |
S03BP101909 |
The screen of the currently selected audio source is displayed .
For details about how to use the audio set , refer to the separate navigation / audio Owner ’ s Manual .
1 ) |
Driving range on remaining fuel |
2 ) |
Average fuel consumption corresponding |
to the driving distance of each trip meter |
3 ) |
Current fuel consumption |
The fuel consumption information is displayed on the screen .
NOTE
The driving range on remaining fuel is only a guide . The indicated value may differ from the actual driving range on remaining fuel , so you must immediately fill the tank when the low fuel warning light illuminates .
The time and date are displayed .
You can adjust the time and date . For details , refer to “ Clock ” F3-66 .
– CONTINUED –
