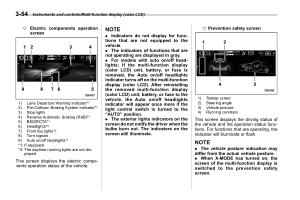

3-54
Instruments and controls / Multi-function display ( color LCD )
! Electric components operation screen
S03BP101901
1 ) |
Lane Departure Warning indicator * 1
|
2 ) |
Pre-Collision Braking System indicator * 1
|
3 ) |
Stop lights |
4 ) |
Reverse Automatic Braking ( RAB )* 1
|
5 ) |
BSD / RCTA * 1
|
6 ) |
Headlights * 2
|
7 ) |
Front fog lights * 2
|
8 ) |
Turn signals |
9 ) |
Auto on / off headlights * 1
|
* 1 : If equipped |
* 2 : The daytime running lights are not displayed |
. |
This screen displays the electric components |
operation status of the vehicle . |
NOTE
. Indicators do not display for functions that are not equipped to the vehicle . . The indicators of functions that are not operating are displayed in gray . . For models with auto on / off headlights ; If the multi-function display ( color LCD ) unit , battery , or fuse is removed , the Auto on / off headlights indicator turns off on the multi-function display ( color LCD ). After reinstalling the removed multi-function display ( color LCD ) unit , battery , or fuse to the vehicle , the Auto on / off headlights indicator will appear once more if the light control switch is turned to the “ AUTO ” position . . The exterior lights indicators on the screen do not notify the driver when the bulbs burn out . The indicators on the screen still illuminate .
! Prevention safety screen
S03BP101902
1 ) |
Telltale screen |
2 ) |
Steering angle |
3 ) |
Vehicle posture |
4 ) |
Running condition |
This screen displays the driving status of the vehicle and the operation status functions . For functions that are operating , the indicator will illuminate or flash .
NOTE
. The vehicle posture indication may differ from the actual vehicle posture . . When X-MODE has turned on , the screen of the multi-function display is switched to the prevention safety screen .
