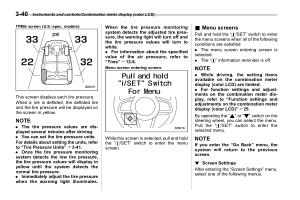

3-40
Instruments and controls / Combination meter display ( color LCD )
TPMS screen ( U . S . -spec . models ):
This screen displays each tire pressure .
When a tire is deflated , the deflated tire and the tire pressure will be displayed on the screen in yellow .
NOTE
. The tire pressure values are displayed several minutes after driving . . You can set the tire pressure units .
For details about setting the units , refer to “ Tire Pressure Units ” F3-41 . . Once the tire pressure monitoring system detects the low tire pressure , the tire pressure values will display in yellow until the system detects the normal tire pressure . . Immediately adjust the tire pressure when the warning light illuminates .
When the tire pressure monitoring system detects the adjusted tire pressure , the warning light will turn off and the tire pressure values will turn to white . . For information about the specified value of the air pressure , refer to “ Tires ” F12-8 .
Menu screen entering screen :
While this screen is selected , pull and hold the “ / SET ” switch to enter the menu screen .
& Menu screens
S03BN07
Pull and hold the “ / SET ” switch to enter the menu screens when all of the following conditions are satisfied .
. The menu screen entering screen is selected .
. The “ ” information reminder is off .
NOTE
. While driving , the setting items available on the combination meter display ( color LCD ) are limited . . For function settings and adjustments on the combination meter display , refer to “ Function settings and adjustments on the combination meter display ( color LCD )” F25 .
By operating the “ ” or “ ” switch on the steering wheel , you can select the menu . Pull the “ / SET ” switch to enter the selected menu .
NOTE
If you enter the “ Go Back ” menu , the system will return to the previous screen .
! Screen Settings
S03BN0701
After entering the “ Screen Settings ” menu , select one of the following menus .
