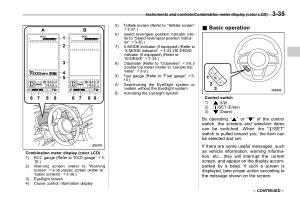

Instruments and controls / Combination meter display ( color LCD ) 3-35
Combination meter display ( color LCD ) 1 ) ECO gauge ( Refer to “ ECO gauge ” F3-
10 .)
2 ) Warning screen ( Refer to “ Warning screen ” F3-36 .)/ Basic screen ( Refer to “ Basic screens ” F3-38 .)
3 ) EyeSight screen 4 ) Cruise control information display
5 ) Telltale screen ( Refer to “ Telltale screen ” F3-37 .)
6 ) Select lever / gear position indicator ( Refer to “ Select lever / gear position indicator ” F3-30 .)
7 ) X-MODE indicator ( if equipped ) ( Refer to “ X-MODE indicator ” F3-33 .)/ SI-DRIVE indicator ( if equipped ) ( Refer to “ SI-DRIVE ” F7-33 .)
8 ) Odometer ( Refer to “ Odometer ” F3-9 .)/ Double trip meter ( Refer to “ Double trip meter ” F3-9 .)
9 ) Fuel gauge ( Refer to “ Fuel gauge ” F3- 10 .)
A : Deactivating the EyeSight system or models without the EyeSight system
B : Activating the EyeSight system
& Basic operation
Control switch |
1 ) |
( Up ) |
2 ) |
/ SET ( Enter ) |
3 ) |
( Down ) |
S03BN01
By operating “ ” or “ ” of the control switch , the screens and selection items can be switched . When the “ / SET ” switch is pulled toward you , the item can be selected and set .
If there are some useful messages , such as vehicle information , warning information , etc ., they will interrupt the current screen , and appear on the display accompanied by a beep . If such a screen is displayed , take proper action according to the message shown on the screen .
– CONTINUED –
