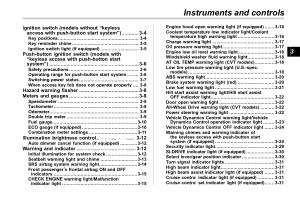

Ignition switch ( models without “ keyless
S03
access with push-button start system ”)............ 3-4 Key positions ......................................................... 3-4 Key reminder chime ............................................... 3-5 Ignition switch light ( if equipped ) ........................... 3-5
Push-button ignition switch ( models with “ keyless access with push-button start system ”) ............................................................... 3-6
Safety precautions ................................................. 3-6 Operating range for push-button start system ........ 3-6 Switching power status .......................................... 3-7 When access key fob does not operate properly .... 3-8 Hazard warning flasher .......................................... 3-8 Meters and gauges ................................................. 3-8 Speedometer ......................................................... 3-8 Tachometer ............................................................ 3-8 Odometer ............................................................... 3-9 Double trip meter ................................................... 3-9 Fuel gauge ............................................................ 3-10 ECO gauge ( if equipped ) ....................................... 3-10 Combination meter settings .................................. 3-11
Illumination brightness control ............................ 3-12 Auto dimmer cancel function ( if equipped ) ............ 3-12
Warning and indicator .......................................... 3-12 Initial illumination for system check ...................... 3-12 Seatbelt warning light and chime .......................... 3-13 SRS airbag system warning light ........................... 3-14 Front passenger ’ s frontal airbag ON and OFF indicators ........................................................... 3-15
CHECK ENGINE warning light / Malfunction indicator light ..................................................... 3-15
Instruments and controls
Engine hood open warning light ( if equipped ) ....... 3-16 Coolant temperature low indicator light / Coolant temperature high warning light .......................... 3-16
Charge warning light ............................................ 3-17 Oil pressure warning light ..................................... 3-17 Engine low oil level warning light .......................... 3-18 Windshield washer fluid warning light ................... 3-18 AT OIL TEMP warning light ( CVT models ).............. 3-18
Low tire pressure warning light ( U . S . -spec . models ) ............................................................. 3-18
ABS warning light ................................................. 3-20 Brake system warning light ( red ) .......................... 3-20 Low fuel warning light .......................................... 3-21 Hill start assist warning light / Hill start assist
OFF indicator light ............................................. 3-22
Door open warning light ....................................... 3-22 All-Wheel Drive warning light ( CVT models ) .......... 3-22 Power steering warning light ................................ 3-22 Vehicle Dynamics Control warning light / Vehicle
Dynamics Control operation indicator light ........ 3-23
Vehicle Dynamics Control OFF indicator light ....... 3-24
Warning chimes and warning indicator of the keyless access with push-button start system ( if equipped ) .......................................... 3-24
Security indicator light .......................................... 3-29 SI-DRIVE indicator light ( if equipped ) .................... 3-30 Select lever / gear position indicator ....................... 3-30 Turn signal indicator lights ................................... 3-31 High beam indicator light ...................................... 3-31 High beam assist indicator light ( if equipped ) ....... 3-31 Cruise control indicator light ( if equipped ) ............ 3-31 Cruise control set indicator light ( if equipped )....... 3-31
3
