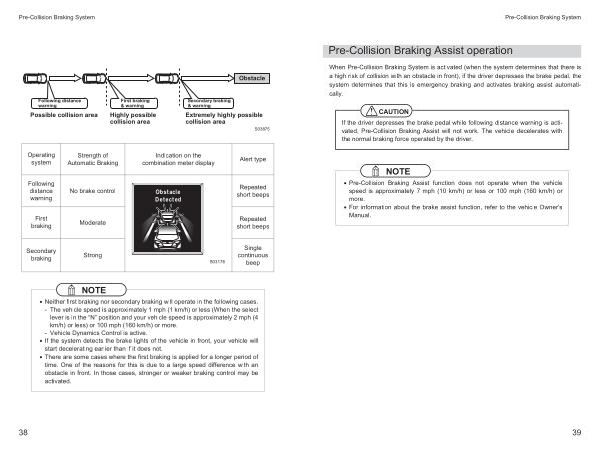

Pre-Collision Braking System
Obstacle
Following distance warning
Possible collision area
First braking & warning
Highly possible collision area
Secondary braking & warning
Extremely highly possible collision area
S03875
Operating system |
Strength of Automatic Braking |
Indication on the combination meter display |
Alert type |
Following distance warning |
No brake control |
|
Repeated short beeps |
First braking |
Moderate |
|
Repeated short beeps |
Secondary braking |
Strong |
S03176 |
Single continuous beep |
NOTE
• Neither first braking nor secondary braking will operate in the following cases . - The vehicle speed is approximately 1 mph ( 1 km / h ) or less ( When the select lever is in the “ N ” position and your vehicle speed is approximately 2 mph ( 4 km / h ) or less ) or 100 mph ( 160 km / h ) or more . - Vehicle Dynamics Control is active .
• If the system detects the brake lights of the vehicle in front , your vehicle will start decelerating earlier than if it does not .
• There are some cases where the first braking is applied for a longer period of time . One of the reasons for this is due to a large speed difference with an obstacle in front . In those cases , stronger or weaker braking control may be activated .
38
