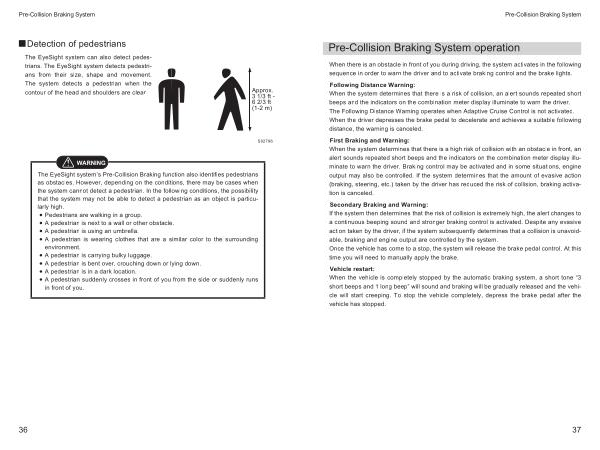

Pre-Collision Braking System
■ Detection of pedestrians
The EyeSight system can also detect pedestrians.
The EyeSight system detects pedestrians
from their size, shape and movement.
The system detects a pedestrian when the
contour of the head and shoulders are clear.
Approx.
3 1/3 ft -
6 2/3 ft
(1-2 m)
S02796
WARNING
The EyeSight system’s Pre-Collision Braking function also identifies pedestrians
as obstacles. However, depending on the conditions, there may be cases when
the system cannot detect a pedestrian. In the following conditions, the possibility
that the system may not be able to detect a pedestrian as an object is particularly
high.
• Pedestrians are walking in a group.
• A pedestrian is next to a wall or other obstacle.
• A pedestrian is using an umbrella.
• A pedestrian is wearing clothes that are a similar color to the surrounding
environment.
• A pedestrian is carrying bulky luggage.
• A pedestrian is bent over, crouching down or lying down.
• A pedestrian is in a dark location.
• A pedestrian suddenly crosses in front of you from the side or suddenly runs
in front of you.
