About EyeSight

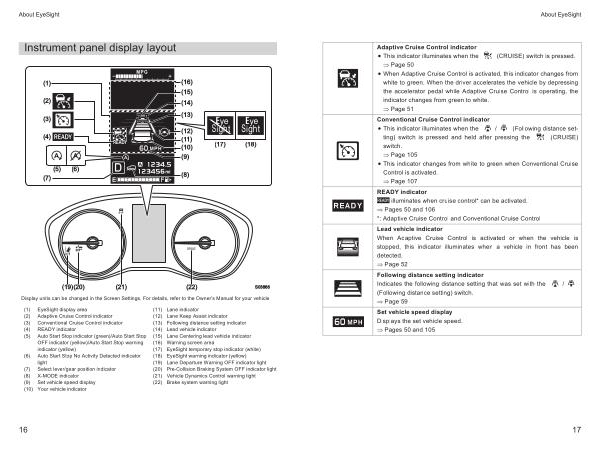

Instrument panel display layout
(1)
(2)
(3)
(4)
(5) (6)
(7)
(16)
(15)
(14)
(13)
(12)
(11)
(10)
(9)
(8)
(17) (18)
(19)(20) (21) (22)
S03866
Display units can be changed in the Screen Settings. For details, refer to the Owner’s Manual for your vehicle.
(1) EyeSight display area
(2) Adaptive Cruise Control indicator
(3) Conventional Cruise Control indicator
(4) READY indicator
(5) Auto Start Stop indicator (green)/Auto Start Stop
OFF indicator (yellow)/Auto Start Stop warning
indicator (yellow)
(6) Auto Start Stop No Activity Detected indicator
light
(7) Select lever/gear position indicator
(8) X-MODE indicator
(9) Set vehicle speed display
(10) Your vehicle indicator
(11) Lane indicator
(12) Lane Keep Assist indicator
(13) Following distance setting indicator
(14) Lead vehicle indicator
(15) Lane Centering lead vehicle indicator
(16) Warning screen area
(17) EyeSight temporary stop indicator (white)
(18) EyeSight warning indicator (yellow)
(19) Lane Departure Warning OFF indicator light
(20) Pre-Collision Braking System OFF indicator light
(21) Vehicle Dynamics Control warning light
(22) Brake system warning light
