1-48

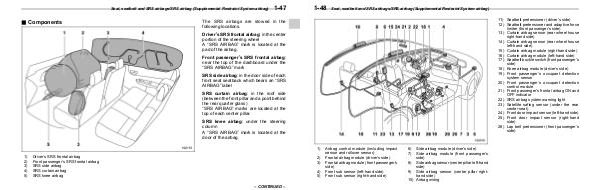

Seat, seatbelt and SRS airbags / SRS airbag( Supplemental Restraint System airbag)
11) Seatbelt pretensioner( driver’ s side)
12) Seatbelt pretensioner and adaptive force limiter( front passenger’ s side)
13) Curtain airbag sensor( rear wheel house right-hand side)
14) Curtain airbag sensor( rear wheel house left-hand side)
15) Curtain airbag module( right-hand side) 16) Curtain airbag module( left-hand side) 17) Seatbelt buckle switch( front passenger’ s side)
18) Knee airbag module( driver’ s side)
19) Front passenger’ s occupant detection system sensor
20) Front passenger’ s occupant detection control module
21) Front passenger’ s frontal airbag ON and OFF indicator
22) SRS airbag system warning light 23) Satellite safing sensor( under the rear center seat)
24) Front door impact sensor( left-hand side)
25) Front door impact sensor( right-hand side)
26) Lap belt pretensioner( front passenger’ s side)
1) |
Airbag control module( including impact |
sensor and rollover sensor) |
2) |
Frontal airbag module( driver’ s side) |
3) |
Frontal airbag module( front passenger’ s |
side) |
4) |
Front sub sensor( left-hand side) |
5) |
Front sub sensor( right-hand side) |
6) Side airbag module( driver’ s side)
7) Side airbag module( front passenger’ s side)
8) Side airbag sensor( center pillar left-hand side)
9) Side airbag sensor( center pillar righthand side)
10) Airbag wiring
