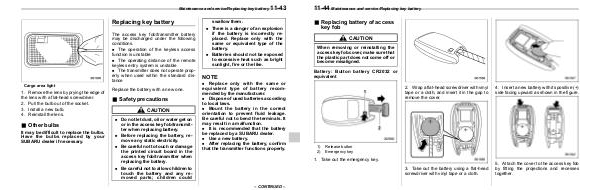

11-44 Maintenance and service / Replacing key battery
& Replacing battery of access key fob
S11BK01
CAUTION
When removing or reinstalling the access key fob cover, make sure that the plastic part does not come off or become misaligned.
Battery: Button battery CR2032 or equivalent
2. Wrap a flat-head screwdriver with vinyl tape or a cloth, and insert it in the gap to remove the cover.
4. Insert a new battery with its positive(+) side facing upward as shown in the figure.
1) |
Release button |
2) |
Emergency key |
1. Take out the emergency key.
3. Take out the battery using a flat-head screwdriver with vinyl tape or a cloth.
5. Attach the cover to the access key fob by fitting the projections and recesses together.
