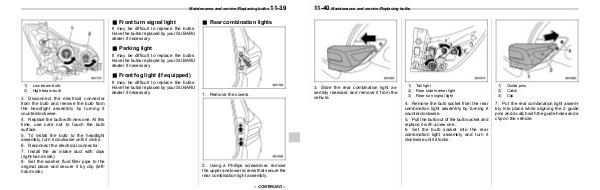

Maintenance and service/Replacing bulbs
& Front turn signal light
11-39
& Rear combination lights
S11BE03
S11BE05
It may be difficult to replace the bulbs.
Have the bulbs replaced by your SUBARU
dealer if necessary.
& Parking light
S11BE02
It may be difficult to replace the bulbs.
Have the bulbs replaced by your SUBARU
dealer if necessary.
& Front fog light (if equipped)
S11BE04
1)
2)
Low beam bulb
High beam bulb
3. Disconnect the electrical connector
from the bulb and remove the bulb from
the headlight assembly by turning it
counterclockwise.
4. Replace the bulb with new one. At this
time, use care not to touch the bulb
surface.
5. To install the bulb to the headlight
assembly, turn it clockwise until it clicks.
6. Reconnect the electrical connector.
7. Install the air intake duct with clips
(right-hand side).
8. Set the washer fluid filler pipe to the
original place and secure it by clip (left-
hand side).
It may be difficult to replace the bulbs.
Have the bulbs replaced by your SUBARU
dealer if necessary.
1. Remove the covers.
2. Using a Phillips screwdriver, remove
the upper and lower screws that secure the
rear combination light assembly.
– CONTINUED –
