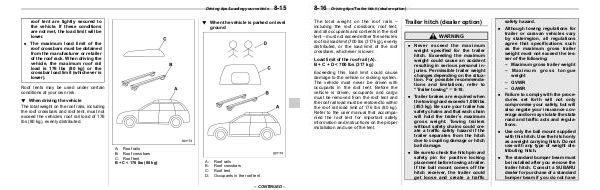

Driving tips / Loading your vehicle 8-15 roof tent are tightly secured to the vehicle. If these conditions are not met, the load limit will be lower.
. The maximum load limit of the roof crossbars must be obtained from the manufacturer or retailer of the roof rack. When driving the vehicle, the maximum roof rail load is 176 lbs( 80 kg) or the crossbar load limit( whichever is lower).
! When the vehicle is parked on level ground
S08AJ1402
Roof tents may be used under certain conditions at your own risk.
! When driving the vehicle
S08AJ1401
The total weight on the roof rails, including the roof crossbars and roof tent, must not exceed the vehicle’ s roof rail load of 176 lbs( 80 kg), evenly distributed.
A: |
Roof rails |
B: |
Roof crossbars |
C: |
Roof tent |
B + C < 176 lbs( 80 kg) |
A: B: C: D:
Roof rails Roof crossbars Roof tent Occupants in the roof tent
– CONTINUED –
