7-64

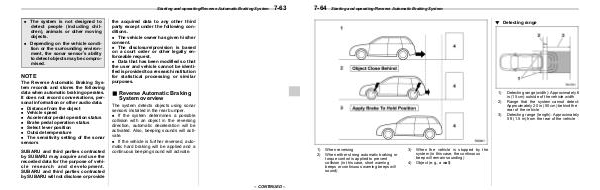

Starting and operating/Reverse Automatic Braking System
! Detecting range
S07BN0101
1)
2)
3)
1)
2)
When reversing
When either strong automatic braking or
torque control is applied to prevent
collision (in this case, short warning
beeps or continuous warning beeps will
sound)
3)
4)
When the vehicle is stopped by the
system (in this case, the continuous
beep will remain sounding)
Object (e.g., a wall)
Detecting range (width): Approximately 6
in (15 cm) outside of the vehicle width
Range that the system cannot detect:
Approximately 20 in (50 cm) behind the
rear of the vehicle
Detecting range (length): Approximately
5 ft (1.5 m) from the rear of the vehicle
