Climate control/Climate control panel
4-5
4)
Air inlet selection button (Refer to “Air
inlet selection” F4-9.)
5) MAX A/C button (Refer to “MAX A/C
mode (for type B and C)” F4-8.)
6) Defroster button (Refer to “Defrosting”
F4-10.)
7) Rear window defogger button and out-
side mirror defogger button (if equipped)
(Refer to “Defogger and deicer” F3-86.)
8) Passenger’s side temperature control
dial (Refer to “Temperature control” F4-
8.)
9) SYNC button (Refer to “SYNC mode
(type C)” F4-8.)
10) Fan speed control dial (Refer to “Fan
speed control” F4-9.)
11) Airflow mode selection button (Refer to
“Airflow mode selection” F4-7.)
12) ON/OFF button (Refer to “Automatic
climate control operation (type B and
C)” F4-6.)

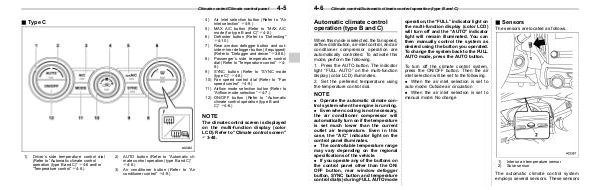

& Type C
S04AG03
NOTE
The climate control screen is displayed
on the multi-function display (color
LCD). Refer to “Climate control screen”
F3-48.
1)
Driver’s side temperature control dial
(Refer to “Automatic climate control
operation (type B and C)” F4-6 and/or
“Temperature control” F4-8.)
2)
3)
AUTO button (Refer to “Automatic cli-
mate control operation (type B and C)”
F4-6.)
Air conditioner button (Refer to “Air
conditioner control” F4-9.)
