Instruments and controls / Mirrors 3-85
WARNING
. When programming the HomeLink ® Wireless Control System, you may be operating a garage door opener or other device. Make sure that people and objects are out of the way of the garage door or other device to prevent potential harm or damage.
. Do not use the HomeLink ® Wireless Control System with a garage door opener that lacks the safety stop and reverse feature as required by applicable safety standards. A garage door opener which cannot detect an object, signaling the door to stop and reverse, does not meet these safety standards. Using a garage door opener without these features increases risk of serious injury or death. For more information, consult the HomeLink ® website at www. homelink. com or call 1-800-355-3515.

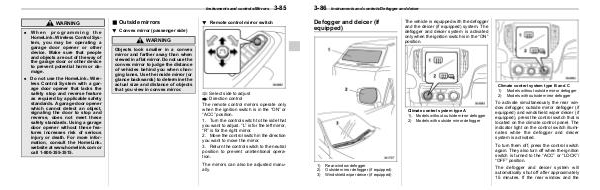

& Outside mirrors
S03AP03
! Convex mirror( passenger side)
S03AP0301
WARNING
Objects look smaller in a convex mirror and farther away than when viewed in a flat mirror. Do not use the convex mirror to judge the distance of vehicles behind you when changing lanes. Use the inside mirror( or glance backwards) to determine the actual size and distance of objects that you view in convex mirror.
! Remote control mirror switch
S03AP0302
: Select side to adjust: Direction control
The remote control mirrors operate only when the ignition switch is in the“ ON” or“ ACC” position.
1. Turn the control switch to the side that you want to adjust.“ L” is for the left mirror,“ R” is for the right mirror.
2. Move the control switch in the direction you want to move the mirror.
3. Return the control switch to the neutral position to prevent unintentional operation.
The mirrors can also be adjusted manually.
