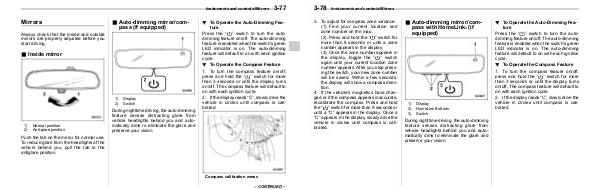

Instruments and controls/Mirrors
Mirrors
S03AP
& Auto-dimming mirror/com-
pass (if equipped)
S03AP02
Always check that the inside and outside
mirrors are properly adjusted before you
start driving.
& Inside mirror
S03AP01
3-77
! To Operate the Auto-Dimming Fea-
ture
S03AP0205
Press the “ ” switch to turn the auto-
dimming feature on/off. The auto-dimming
feature is enabled when the switch’s green
LED indicator is on. The auto-dimming
feature will default to on with each ignition
cycle.
! To Operate the Compass Feature
S03AP0206
1)
2)
1)
2)
Normal position
Anti-glare position
Display
Switch
During nighttime driving, the auto-dimming
feature senses distracting glare from
vehicle headlights behind you and auto-
matically dims to eliminate the glare and
preserve your vision.
1. To turn the compass feature on/off,
press and hold the “ ” switch for more
than 3 seconds or until the display turns
on/off. The compass feature will default to
on with each ignition cycle.
2. If the display reads “C”, slowly drive the
vehicle in circles until compass is cali-
brated.
Push the tab on the mirror for normal use.
To reduce glare from the headlights of the
vehicle behind you, pull the tab to the
antiglare position.
Compass calibration zones
– CONTINUED –
