3-44

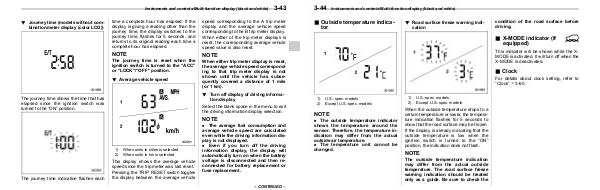

Instruments and controls/Multi-function display (black and white)
& Outside temperature indica-
tor
! Road surface freeze warning indi-
cation
condition of the road surface before
driving.
S03BO0101
S03BO01
& X-MODE indicator (if
equipped)
S03BO12
This indicator will be shown while the X-
MODE is activated. It will turn off when the
X-MODE is deactivated.
& Clock
S03BO10
For details about clock setting, refer to
“Clock” F3-60.
1)
2)
U.S.-spec. models
Except U.S.-spec. models
NOTE
. The outside temperature indicator
shows the temperature around the
sensor. Therefore, the temperature in-
dication may differ from the actual
outside air temperature.
. The temperature unit cannot be
changed.
1)
2)
U.S.-spec. models
Except U.S.-spec. models
When the outside temperature drops to a
certain temperature or lower, the tempera-
ture indication flashes for 5 seconds to
show that the road surface may be frozen.
If the display is already indicating that the
outside temperature is low when the
ignition switch is turned to the “ON”
position, the indication does not flash.
NOTE
The outside temperature indication
may differ from the actual outside
temperature. The road surface freeze
warning indication should be treated
only as a guide. Be sure to check the
