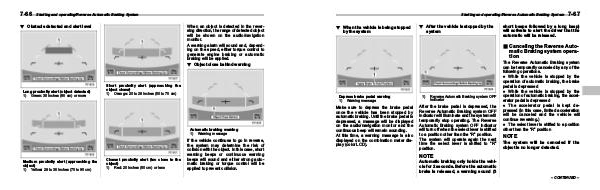

Starting and operating/Reverse Automatic Braking System
! When the vehicle is being stopped
by the system
! After the vehicle is stopped by the
system
7-67
short beeps followed by a long beep)
will activate to alert the driver that the
automatic will be released.
& Canceling the Reverse Auto-
matic Braking system opera-
tion
Depress brake pedal warning
1) Warning message
Make sure to depress the brake pedal
once the vehicle has been stopped by
automatic braking. Until the brake pedal is
depressed, a message will be displayed
on the audio/navigation monitor and the
continuous beep will remain sounding.
At this time, a warning message is also
displayed on the combination meter dis-
play (color LCD).
1)
Reverse Automatic Braking system OFF
indicator
After the brake pedal is depressed, the
Reverse Automatic Braking system OFF
indicator will illuminate and the system will
temporarily stop operating. The Reverse
Automatic Braking system OFF indicator
will turn off when the select lever is shifted
to a position other than the “R” position.
The system will operate again the next
time the select lever is shifted to “R”
position.
The Reverse Automatic Braking system
can be temporarily canceled by any of the
following operations.
. While the vehicle is stopped by the
operation of automatic braking, the brake
pedal is depressed
. While the vehicle is stopped by the
operation of automatic braking, the accel-
erator pedal is depressed
. The accelerator pedal is kept de-
pressed (In this case, limited acceleration
will be canceled and the vehicle will
continue reversing.)
. The select lever is shifted to a position
other than the “R” position
NOTE
The system will be canceled if the
object is no longer detected.
NOTE
Automatic braking only holds the vehi-
cle for 2 seconds. Before the automatic
brake is released, a warning sound (3
– CONTINUED –
